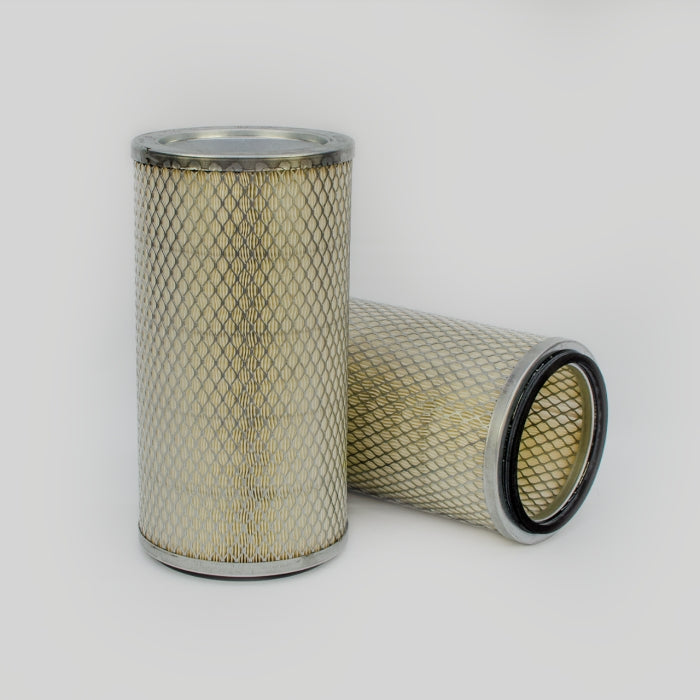

Donaldson Air Filter, Safety P522450

Safety filters have two functions: to act as a backup to the primary filter and to protect the engine during primary filter servicing.
• Serve as a backup filter in case of primary filter damage or improper installation.
• Prevent contaminants from entering the clean side of the air intake system during primary filter servicing.
• Designed to plug rapidly if contamination finds its way past the primary filter, alerting operators about an issue.
• Recommend that safety filters are replaced with every third primary filter change unless there has been a failure of the primary filter.

Specifications:

Outer Diameter	141.2 mm (5.56 inch)
Inner Diameter	106.7 mm (4.20 inch)
Length	268.5 mm (10.57 inch)
Bolt Hole Diameter	16.76 mm (0.66 inch)
Efficiency Test Std	ISO 5011
Primary Application	KOMATSU 6114807101S
Type	Safety
Style	Round
