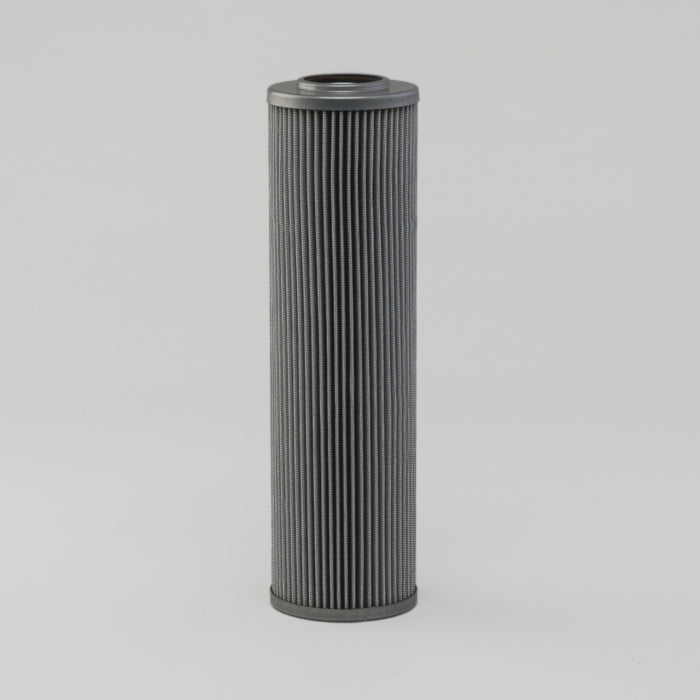

Donaldson Hydraulic Filter, Cartridge Dt P566683

High-performance DT Hydraulic Cartridges utilize Donaldson Synteq™ media technology which extends filter life, allows a higher initial cleanliness, and provides superior hydraulic system protection.
• DT hydraulic filters help protect equipment, reduce maintenance cost and increase equipment uptime ? which has a direct impact on your bottom line.
• DT filters offer the best available chemical resistance for hydraulic applications.
• A high dirt holding capacity provides longer filter life ? for extended filter change intervals, reducing time and expense for servicing equipment
• Fluorocarbon seals are standard on all Donaldson DT filters.

Specifications:

Seal Material	Viton
Outer Diameter	92.1 mm (3.63 inch)
Inner Diameter	48.1 mm (1.89 inch)
Gasket ID	46.4 mm (1.83 inch)
Overall Length	329.5 mm (12.97 inch)
Efficiency Beta 1000	8 micron
Bypass Valve	No
Collapse Burst	31 bar (450 psi)
Style	Cartridge
Brand	DT High-Performance
Media Type	Synthetic
