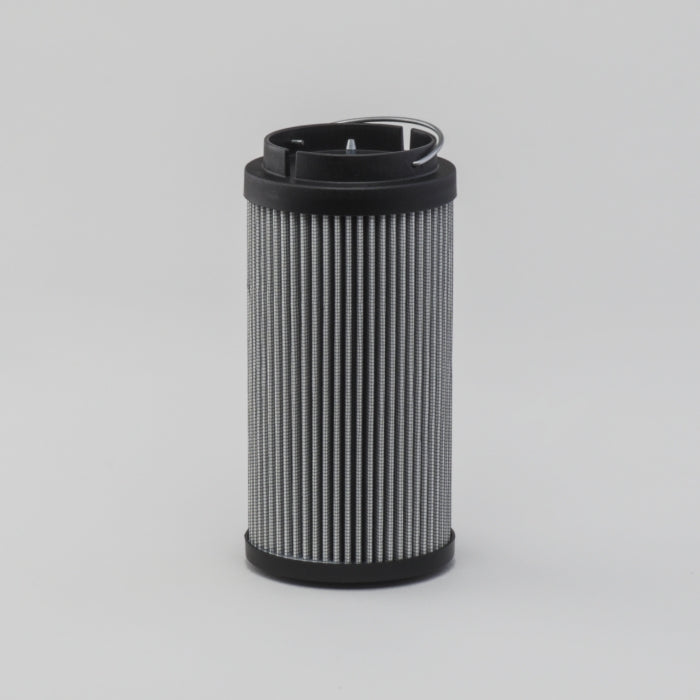

Donaldson Hydraulic Filter, Cartridge Dt P566981

High-performance DT Hydraulic Cartridges utilize Donaldson Synteq™ media technology which extends filter life, allows a higher initial cleanliness, and provides superior hydraulic system protection.
• DT hydraulic filters help protect equipment, reduce maintenance cost and increase equipment uptime ? which has a direct impact on your bottom line.
• DT filters offer the best available chemical resistance for hydraulic applications.
• A high dirt holding capacity provides longer filter life ? for extended filter change intervals, reducing time and expense for servicing equipment
• Fluorocarbon seals are standard on all Donaldson DT filters.

Specifications:

Outer Diameter	94.5 mm (3.72 inch)
Inner Diameter	48.3 mm (1.9 inch)
Length	194.7 mm (7.67 inch)
Gasket ID	47.22 mm (1.86 inch)
Efficiency Beta 1000	5 micron
Bypass Valve	Yes
Bypass Valve Setting LR	3.45 bar (50 psi)
Media Brand	DT High-Performance
Media Type	Synthetic
