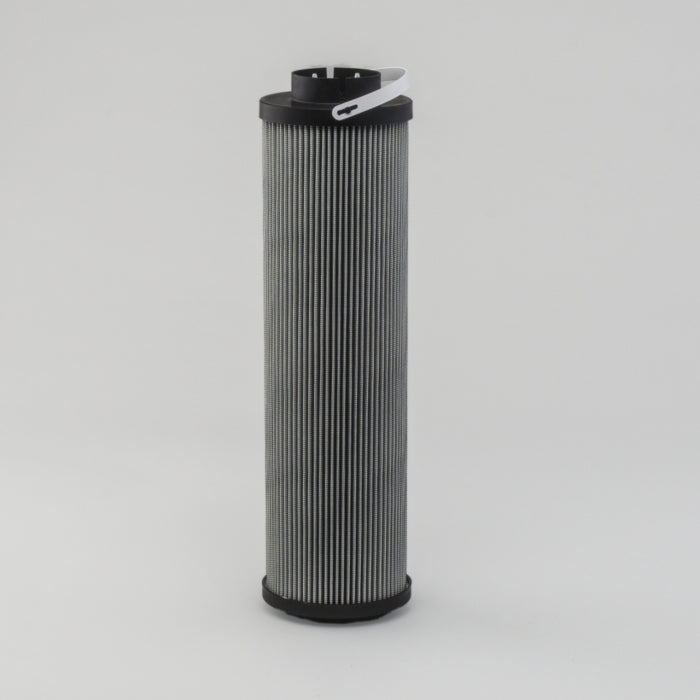

Donaldson Hydraulic Filter, Cartridge Dt P566991

High-performance DT Hydraulic Cartridges utilize Donaldson Synteq™ media technology which extends filter life, allows a higher initial cleanliness, and provides superior hydraulic system protection.
• DT hydraulic filters help protect equipment, reduce maintenance cost and increase equipment uptime ? which has a direct impact on your bottom line.
• DT filters offer the best available chemical resistance for hydraulic applications.
• A high dirt holding capacity provides longer filter life ? for extended filter change intervals, reducing time and expense for servicing equipment
• Fluorocarbon seals are standard on all Donaldson DT filters.

Specifications:

Outer Diameter	113.92 mm (4.49 inch)
Inner Diameter	68.6 mm (2.70 inch)
Length	410.7 mm (16.17 inch)
Gasket ID	66 mm (2.60 inch)
Efficiency Beta 1000	12 micron
Bypass Valve	Yes
Bypass Valve Setting LR	3.5 bar (51 psi)
Collapse Burst	20 bar (290 psi)
Media Brand	DT High-Performance
Media Type	Synthetic
