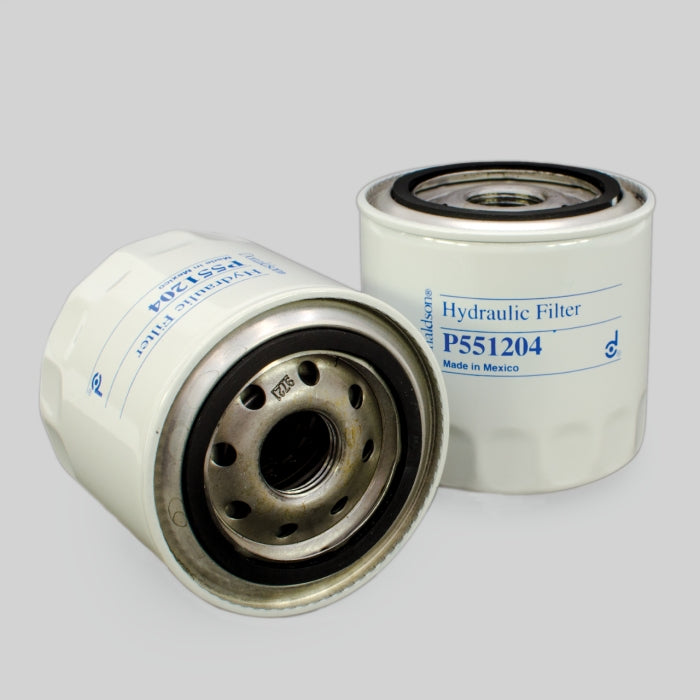

Donaldson Hydraulic Filter, Spin-On P551204

• High-performance Hydraulic Spin-On filters utilize Donaldson media technology which undergoes stringent design and testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM specifications

Specifications:

Outer Diameter	93.2 mm (3.67 inch)
Thread Size	1-12 UN
Length	95.5 mm (3.76 inch)
Gasket OD	72 mm (2.83 inch)
Gasket ID	62.5 mm (2.46 inch)
Efficiency Beta 200	47 micron
Bypass Valve	Yes
Bypass Valve Setting LR	0.8 bar (12 psi)
Bypass Valve Setting HR	1 bar (15 psi)
Style	Spin-On
Primary Application	REXNORD 493308
