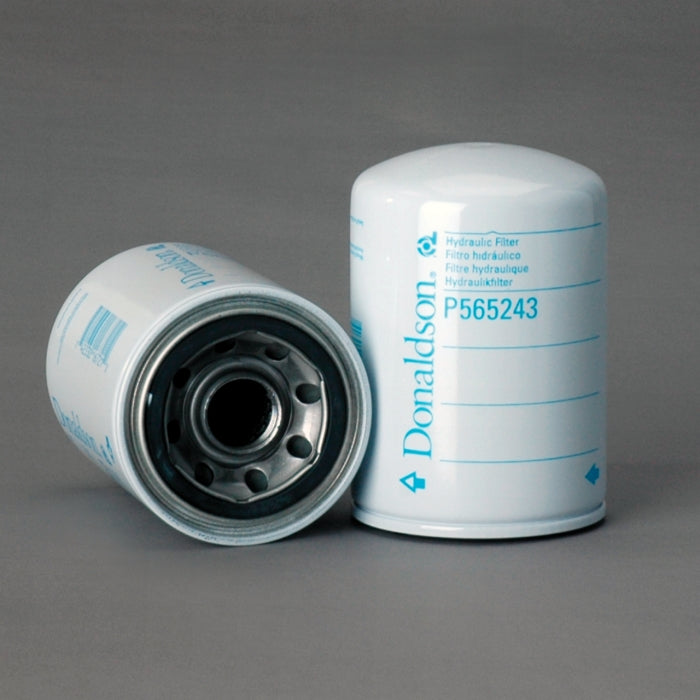

Donaldson Hydraulic Filter, Spin-On P565243
Product details
Product Description
• High-performance Hydraulic Spin-On filters utilize Donaldson media technology which undergoes stringent design and testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM specifications
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM specifications
Specifications:
| Outer Diameter | 93 mm (3.66 inch) |
| Thread Size | 3/4 BSP/G |
| Length | 136 mm (5.35 inch) |
| Gasket OD | 71.5 mm (2.81 inch) |
| Gasket ID | 61.5 mm (2.42 inch) |
| Efficiency Beta 2 | 7 micron |
| Efficiency Beta 1000 | 23 micron |
| Collapse Burst | 6.9 bar (100 psi) |
| Style | Spin-On |
| Media Type | Cellulose |
