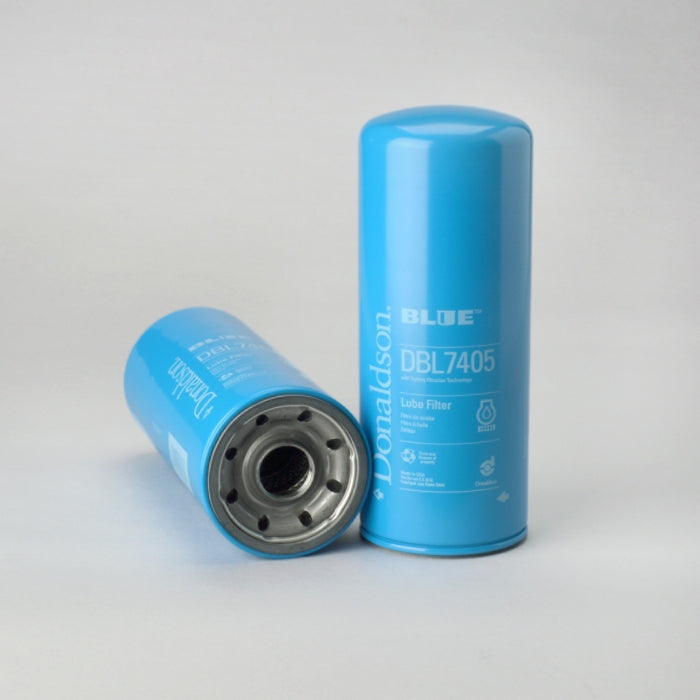

Donaldson Lube Filter, Spin-On Full Flow Donaldson Blue DBL7405
Product details
Product Description
Donaldson Blue® lube filters are designed specifically for extended maintenance programs.
• Proven Synteq™ – media delivers greater efficiency and higher contaminant holding capacity.
• Removes more than 90% of contaminants 10 microns or larger (cellulose filters typically remove 50% or less).
• Twice the contaminant holding capacity of standard cellulose filters – for longer filter life.
• Direct replacements to standard filters – no system modifications.
• Proven Synteq™ – media delivers greater efficiency and higher contaminant holding capacity.
• Removes more than 90% of contaminants 10 microns or larger (cellulose filters typically remove 50% or less).
• Twice the contaminant holding capacity of standard cellulose filters – for longer filter life.
• Direct replacements to standard filters – no system modifications.
Specifications:
| Outer Diameter | 118 mm (4.65 inch) |
| Thread Size | 1 1/2-16 UN |
| Length | 298 mm (11.73 inch) |
| Gasket OD | 110 mm (4.33 inch) |
| Gasket ID | 98 mm (3.86 inch) |
| Efficiency 99% | 15 micron |
| Efficiency Test Std | ISO 4548-12 |
| Media Type | Synteq |
| Collapse Burst | 10.3 bar (149 psi) |
| Type | Full-Flow |
| Style | Spin-On |
| Brand | Donaldson BLUE® |
