Description

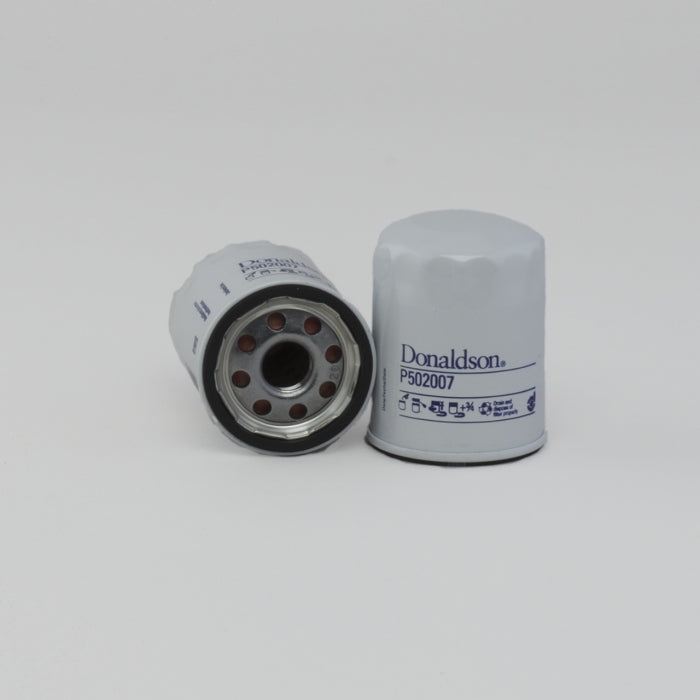

Donaldson lube filters are designed to keep today’s engine lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.
Specifications:
| Outer Diameter | 68 mm (2.68 inch) |
| Thread Size | M20 x 1.5 |
| Length | 85 mm (3.35 inch) |
| Gasket OD | 64 mm (2.52 inch) |
| Gasket ID | 56 mm (2.20 inch) |
| Efficiency 50% | 22.95 micron |
| Efficiency 90% | 33.87 micron |
| Efficiency 95% | 40 micron |
| Efficiency Beta 75 | 50 micron |
| Efficiency Test Std | JIS D 1611 |
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 0.8 bar (12 psi) |
| Bypass Valve Setting HR | 1 bar (15 psi) |
| Media Type | Cellulose |
| Collapse Burst | 6.9 bar (100 psi) |
| Type | Full-Flow |
| Style | Spin-On |
| Primary Application | MITSUBISHI MD135737 |
