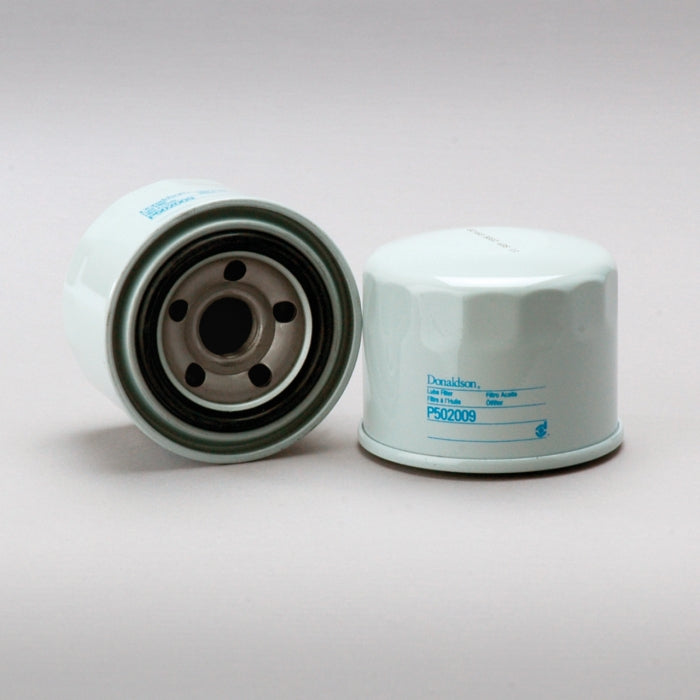

Donaldson Lube Filter, Spin-On Full Flow P502009

Donaldson lube filters are designed to keep today’s engine lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.

Specifications:

Outer Diameter	80.01 mm (3.15 inch)
Thread Size	M20 x 1.5
Length	64.01 mm (2.52 inch)
Gasket OD	62.99 mm (2.48 inch)
Gasket ID	51.56 mm (2.03 inch)
Efficiency 50%	20 micron
Efficiency Test Std	JIS D 1611
Anti-Drainback Valve	Yes
Bypass Valve	Yes
Bypass Valve Setting LR	0.8 bar (12 psi)
Bypass Valve Setting HR	1.2 bar (17 psi)
Media Type	Cellulose
Collapse Burst	6.9 bar (100 psi)
Type	Full-Flow
Style	Spin-On
Primary Application	MITSUBISHI MD136466
