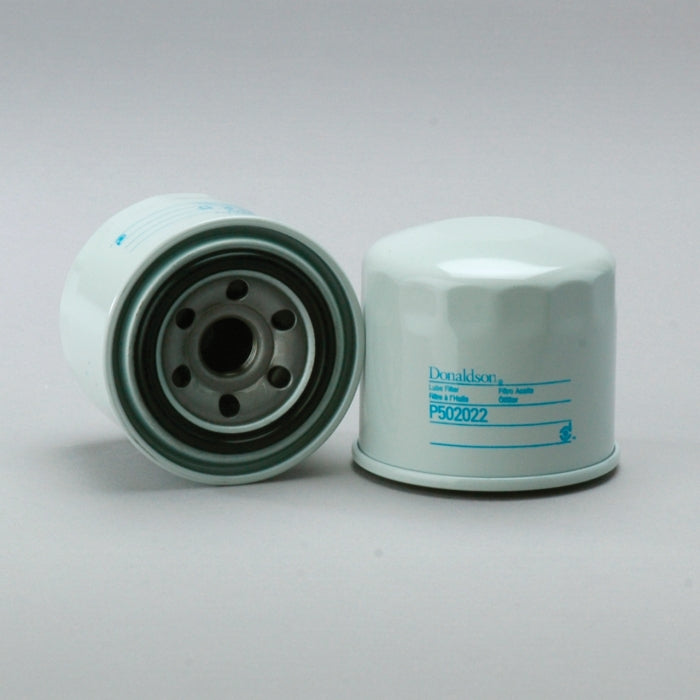

Donaldson Lube Filter, Spin-On Full Flow P502022

Donaldson lube filters are designed to keep today’s engine lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.

Specifications:

Outer Diameter	80 mm (3.15 inch)
Thread Size	3/4-16
Length	75 mm (2.95 inch)
Gasket OD	63 mm (2.48 inch)
Gasket ID	52 mm (2.05 inch)
Efficiency 99%	35 micron
Efficiency Test Std	JIS D 1611
Anti-Drainback Valve	Yes
Bypass Valve	Yes
Bypass Valve Setting LR	0.8 bar (12 psi)
Bypass Valve Setting HR	1 bar (15 psi)
Media Type	Cellulose
Collapse Burst	6.9 bar (100 psi)
Type	Full-Flow
Style	Spin-On
