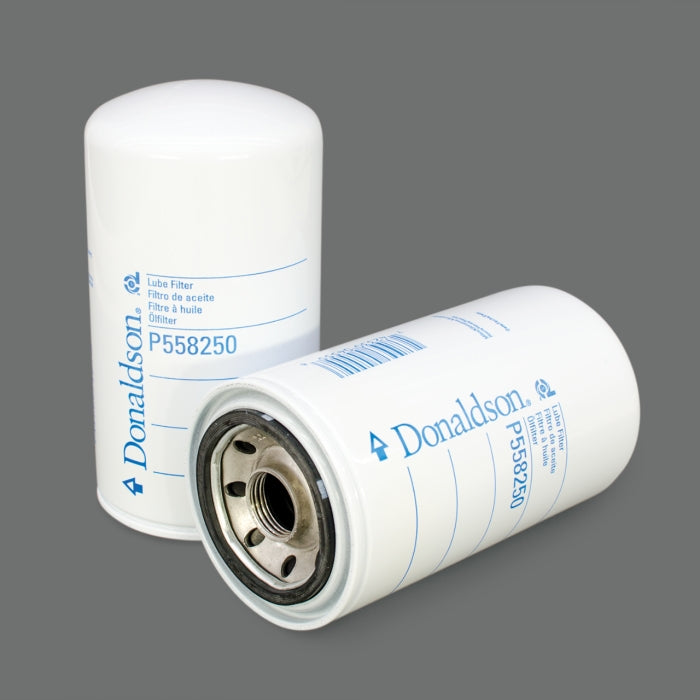

Donaldson Lube Filter, Spin-On Full Flow P558250

Donaldson lube filters are designed to keep today’s engine lube systems functioning at peak performance.
• Keep oil clean by capturing contaminants that cause engine damage.
• Include heavy duty components that are built to perform, built to last.
• Deliver essential engine protection for maximum cold flow performance.

Specifications:

Outer Diameter	93 mm (3.66 inch)
Thread Size	1-12 UN
Length	172 mm (6.77 inch)
Gasket OD	71 mm (2.80 inch)
Gasket ID	61 mm (2.40 inch)
Efficiency 99%	40 micron
Efficiency Test Std	ISO 4548-12
Anti-Drainback Valve	Yes
Bypass Valve	Yes
Bypass Valve Setting LR	0.8 bar (12 psi)
Bypass Valve Setting HR	1.2 bar (17 psi)
Media Type	Cellulose
Collapse Burst	13.8 bar (200 psi)
Type	Full-Flow
Style	Spin-On
Primary Application	CASE/CASE IH 528250R91
