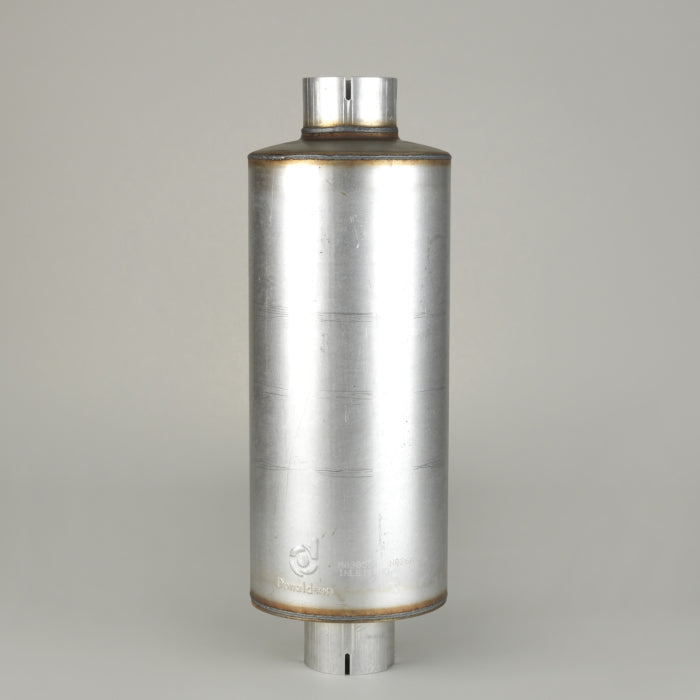

Donaldson Muffler, Round Style 1 M090594

Donaldson Muffler, Round Style 1 M090594 – High-Performance Filtration – Roladex UK
Product details
Brand
Donaldson
Category
Industrial Air, Oil & Hydraulic Filters
Roladex Industrial
Genuine branded products View more Donaldson products.
UK & export supply Industrial parts supplied across the UK and overseas.
Sourcing & quote support Talk directly to our industrial sales team.
Price ex VAT £230.88
Price inc VAT £277.06
Price:
£230.88
ex VAT
£277.06
inc VAT
Buy Donaldson from Roladex Industrial

Order online today, or request a quote for quantity pricing, confirmed lead time and suitable alternatives.

In stock
Expert support Technical support & sourcing
Customer assurance Delivery, returns & supply policies
Trade accounts Apply for a trade account
UK & export supply Delivery & supply policy

Product Description

Specifications:

Inlet Diameter 102.11 mm (4.02 inch)
Outlet Diameter 102.11 mm (4.02 inch)
Body Diameter Maximum 229 mm (9.02 inch)
Body Length 501.65 mm (19.75 inch)
Overall Length 673.1 mm (26.50 inch)
Rated Flow LR 27.2 m³/min (961 cfm)
Rated Flow MR 28.5 m³/min (1006 cfm)
Rated Flow HR 47.2 m³/min (1667 cfm)
Back Pressure Low-Range 25 mm Hg (0.98 inch Hg)
Back Pressure Mid-Range 51 mm Hg (2.01 inch Hg)
Back Pressure High-Range 76 mm Hg (2.99 inch Hg)
Attenuation LR 10 dBA
Attenuation HR 15 dBA
Style Style 1
