Description

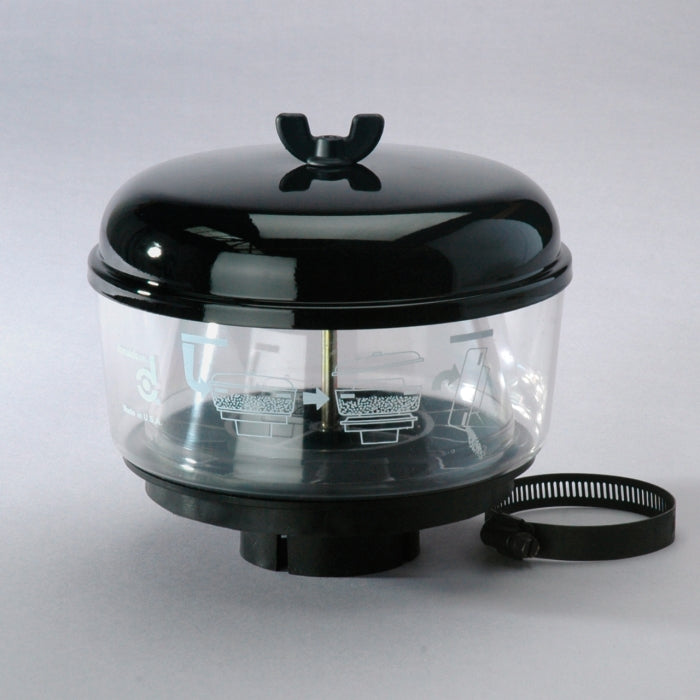

Full-View pre-cleaners help extend primary filter life by removing contamination before it reaches the filter.
• Centrifugal force in bowl separates up to 75% of incoming dust before it enters an engine air intake system.
• The Full-View pre-cleaner is cost effective, and easy to use.
• Full-View plastic bowl lets operator easily see when service is needed.
• One-bolt cover retention for easy service.
• Centrifugal force in bowl separates up to 75% of incoming dust before it enters an engine air intake system.
• The Full-View pre-cleaner is cost effective, and easy to use.
• Full-View plastic bowl lets operator easily see when service is needed.
• One-bolt cover retention for easy service.
Specifications:
| Height | 156.7 mm (6.17 inch) |
| Body Diameter Maximum | 186.5 mm (7.34 inch) |
| Outlet ID | 63.7 mm (2.51 inch) |
| Efficiency | 75 |
| Efficiency Test Std | ISO 5011, SAE J726 |
| Rated Flow HR | 4.3 m³/min (152 cfm) |
| Restriction LR | 2.45 mbar (0.98 inch H2O) |
| Restriction HR | 7.45 mbar (2.99 inch H2O) |
