Description

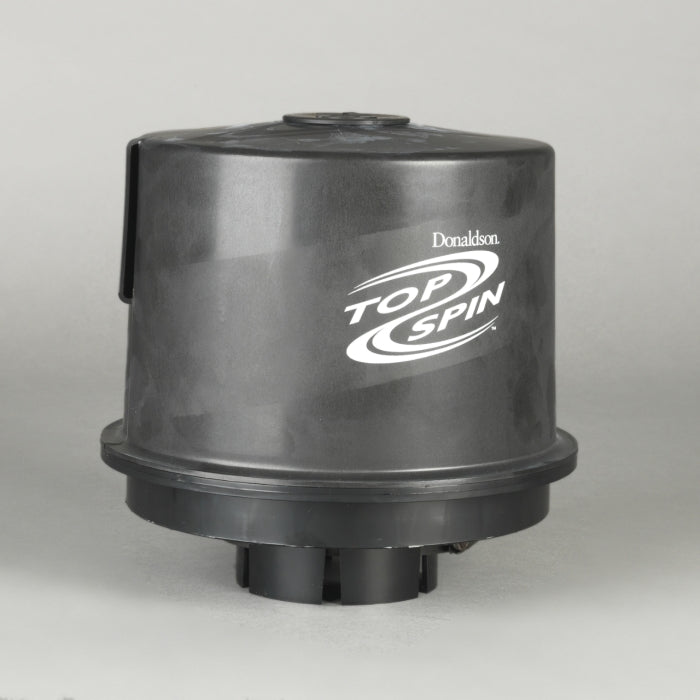

Donaldson TopSpin™ pre-cleaners extend primary air filter life, boost system efficiency, and extend engine life.
• Separates up to 85% of incoming contaminant per ISO 5011/SAE J726.
• Self-cleaning ? no maintenance bowl to clean.
• Quick installation ? one clamp to tighten.
• Lighter than competitive pre-cleaners.
• Separates up to 85% of incoming contaminant per ISO 5011/SAE J726.
• Self-cleaning ? no maintenance bowl to clean.
• Quick installation ? one clamp to tighten.
• Lighter than competitive pre-cleaners.
Specifications:
| Height | 238.51 mm (9.39 inch) |
| Body Diameter Maximum | 241.3 mm (9.50 inch) |
| Outlet ID | 97.28 mm (3.83 inch) |
| Efficiency | 85 |
| Efficiency Test Std | ISO 5011, SAE J726 |
| Rated Flow LR | 5.7 m³/min (201 cfm) |
| Rated Flow HR | 12.7 m³/min (448 cfm) |
| Restriction LR | 2.45 mbar (0.98 inch H2O) |
| Restriction HR | 12.45 mbar (5 inch H2O) |
| Brand | TopSpin™ HD |
