Description

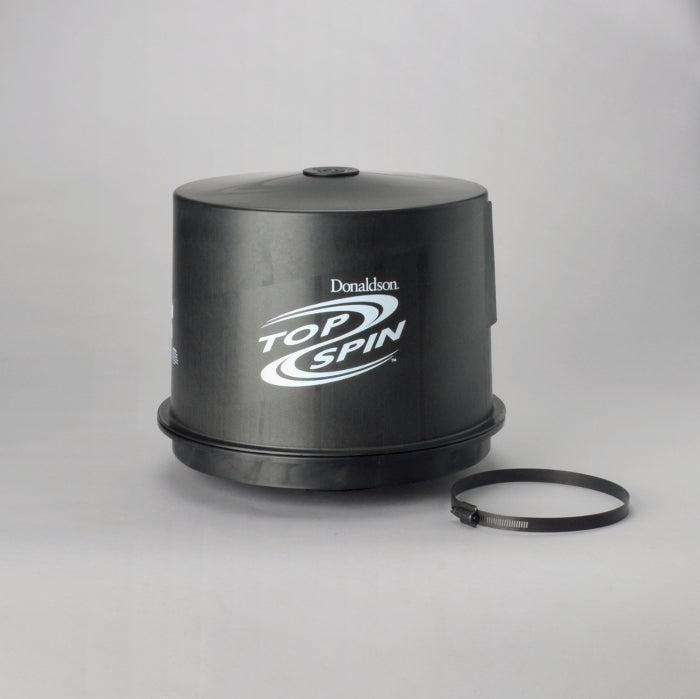

Donaldson TopSpin™ pre-cleaners extend primary air filter life, boost system efficiency, and extend engine life.
• Separates up to 85% of incoming contaminant per ISO 5011/SAE J726.
• Self-cleaning ? no maintenance bowl to clean.
• Quick installation ? one clamp to tighten.
• Lighter than competitive pre-cleaners.
• Separates up to 85% of incoming contaminant per ISO 5011/SAE J726.
• Self-cleaning ? no maintenance bowl to clean.
• Quick installation ? one clamp to tighten.
• Lighter than competitive pre-cleaners.
Specifications:
| Height | 341.38 mm (13.44 inch) |
| Body Diameter Maximum | 396.75 mm (15.62 inch) |
| Outlet ID | 178.56 mm (7.03 inch) |
| Efficiency | 85 |
| Efficiency Test Std | ISO 5011, SAE J726 |
| Rated Flow LR | 22.6 m³/min (798 cfm) |
| Rated Flow HR | 42.5 m³/min (1501 cfm) |
| Restriction LR | 5 mbar (2.01 inch H2O) |
| Restriction HR | 21.77 mbar (8.74 inch H2O) |
| Brand | TopSpin™ HD |
