Description

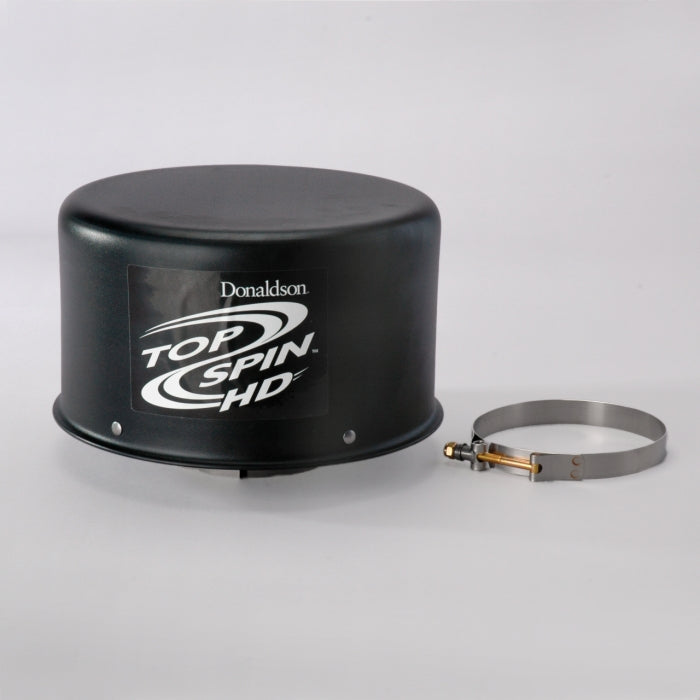

TopSpin™ HD extends primary air filter life, boosts system efficiency and extends engine life in medium to heavy dust environments.
• Separates up to 80% of incoming contaminant per ISO 5011.
• All-metal pre-cleaner is a durable solution for punishing conditions.
• All the interior components are solid stainless steel to resist dirt, water, heat, and debris encountered in demanding environments.
• One-piece stainless-steel impeller is the only moving part. Dual bearings ensure reliable performance.
• Separates up to 80% of incoming contaminant per ISO 5011.
• All-metal pre-cleaner is a durable solution for punishing conditions.
• All the interior components are solid stainless steel to resist dirt, water, heat, and debris encountered in demanding environments.
• One-piece stainless-steel impeller is the only moving part. Dual bearings ensure reliable performance.
Specifications:
| Height | 192 mm (7.56 inch) |
| Body Diameter Maximum | 284 mm (11.18 inch) |
| Outlet ID | 129 mm (5.08 inch) |
| Efficiency | 80.00 |
| Efficiency Test Std | ISO 5011 |
| Rated Flow LR | 10 m³/min (353 cfm) |
| Rated Flow HR | 20 m³/min (706 cfm) |
| Restriction LR | 5.98 mbar (2.4 inch H2O) |
| Restriction HR | 26.87 mbar (10.79 inch H2O) |
| Brand | TopSpin™ HD |
