Festo | DSBC-80-100-D3-PPSA-N3 | Iso Cylinder

Product details
Product Description

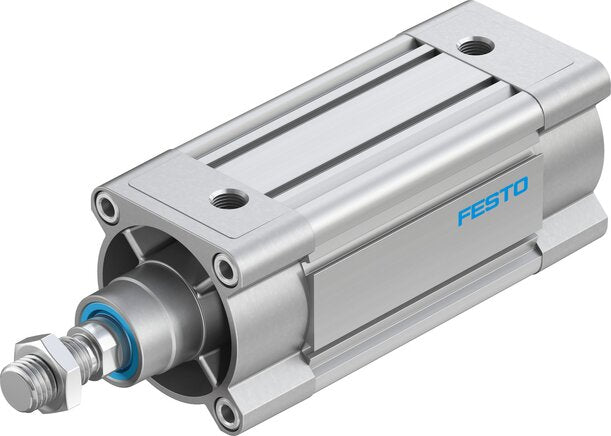

The Festo DSBC-80-100-D3-PPSA-N3 is a double-acting DSBC pneumatic cylinder with a 80 mm bore and 100 mm stroke. It has self-adjusting pneumatic cushioning at both ends.
| Manufacturer | Festo |
| MPN | DSBC-80-100-D3-PPSA-N3 |
| Festo Part Number | 3656862 |
| Product Type | Iso Cylinder |
| Series | Festo | DSBC |
| Category | Pneumatic cylinders |
| Subcategory | Piston rod cylinder |
| GTIN / Barcode | 4052568272210 |
Technical specification
| Bore | 80 mm |
|---|---|
| Stroke | 100 mm |
| Actuation | Double-acting |
| Cylinder standard | ISO 15552 |
| Cushioning | Pneumatic, self-adjusting at both ends |
| Position sensing | Suitable for proximity sensors |
| Pneumatic connection | G3/8 |
| Piston rod thread | M20 × 1.5 |
| Sensor slots | On three profile sides |
Documentation and replacement selection
See the Festo DSBC manufacturer catalogue (PDF) for family drawings, mounting options and operating limits. Match the complete code DSBC-80-100-D3-PPSA-N3, including its suffix, to the original cylinder. Confirm mounting, rod configuration, seals and operating conditions before selecting a replacement.
Compare 80 mm bore DSBC cylinders or browse all Festo DSBC ISO 15552 cylinders.
