EAW 4000-04D (EMC) Eco-Line filter regulator, G 1/2", drain automatic

Genuine EMC EAW 4000-04D – EAW 4000-04D (EMC) Eco-Line filter regulator, G 1/2", drain automatic. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: EAW 4000-04D
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC EAW 4000-04D – EAW 4000-04D (EMC) Eco-Line filter regulator, G 1/2", drain automatic. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: EAW 4000-04D
• Brand: EMC
• Product: EAW 4000-04D (EMC) Eco-Line filter regulator, G 1/2", drain automatic

Trusted by engineers across the UK, this EAW 4000-04D (EMC) Eco-Line filter regulator, G 1/2", drain automatic is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Version:
Reversible pressure regulator (with relieving system) and additional filtering using the centrifugal principle and a sintered filter

Materials:
Bodies: aluminum, spring hood: polyamide, diaphragm and seals: NBR, container: polycarbonate

Temperature range:
-5 to +60 °C

Input pressure:
1.5 to 10 bar

Pressure regulation range:
0.5 to 9 bar

Pressure gauge display:
0 to 10 bar

Condensate draining:
semi-automatic**

Pore width in the filter:
5 µm

Media:
Compressed air, neutral gases

Scope of delivery:
Filter regulator including pressure gauge and mounting bracket

Advantages:
•Automatic venting in case of overpressure on the secondary side,
•Simple assembly of individual components of a series by means of coupling packages,
•Handwheel can be locked by pushing down,
•Fixing bracket included in the scope of delivery,
•Space-saving compact pressure gauge already mounted,

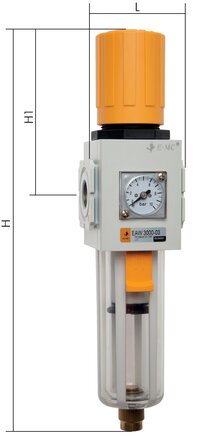

•Double-walled transparent vessel (not series 2A) Model series Eco-?Line 4A Thread G 1/2" Container design Plastic container, double-?walled Condensate drain automatic flow [l/min] 4000 Max. condensate amount [cm³] 75 L [mm] 80 H [mm] 270 H1 [mm] 105 Switch panel thread M 52x1,5 Coupling kit KP EA4000 Weight 1,1 kg / pcs GTIN 4050571924287 Customs duty number 84811005 RoHS compliant Yes Manufacturer EMC
