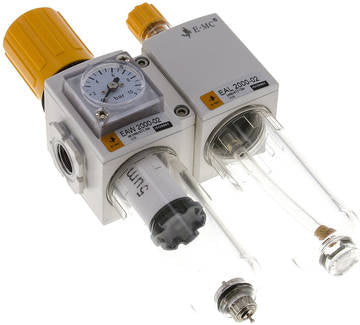

EAC 2010-02 (EMC) Eco-Line maintenance unit, G 1/4", drain manual

Genuine EMC EAC 2010-02 – EAC 2010-02 (EMC) Eco-Line maintenance unit, G 1/4", drain manual. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: EAC 2010-02
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC EAC 2010-02 – EAC 2010-02 (EMC) Eco-Line maintenance unit, G 1/4", drain manual. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: EAC 2010-02
• Brand: EMC
• Product: EAC 2010-02 (EMC) Eco-Line maintenance unit, G 1/4", drain manual

Trusted by engineers across the UK, this EAC 2010-02 (EMC) Eco-Line maintenance unit, G 1/4", drain manual is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Version:
Filter regulator, reversible with mounted lubricator and wall mounting

Materials:
Bodies: aluminum, spring hood: polyamide, diaphragm and seals: NBR, container: polycarbonate

Temperature range:
-5 to +60 °C

Input pressure:
1.5 to 10 bar

Pressure regulation range:
0.5 to 9 bar

Pressure gauge display:
0 to 10 bar

Condensate draining:
semi-automatic**

Pore width in the filter:
5 µm

Media:
Compressed air, neutral gases

Scope of delivery:
Maintenance unit including pressure gauge and mounting bracket

Advantages:
•Automatic venting in case of overpressure on the secondary side,
•Simple assembly of individual components of a series by means of coupling packages,
•Handwheel can be locked by pushing down,
•Wall mounting by means of coupling package with wall bracket already installed,
•Space-saving compact pressure gauge already installed,
•Filling with oil under pressure is possible,
•Double-walled transparent vessel (not series 2A) Model series Eco-Line 2A Thread G 1/4" Container design Plastic container Condensate drain Manually flow [l/min] 26 - 800 Max. condensate amount [cm³] 11 Oil supply [cm³] 30 Reaction limit (5.1 bar) [l/min] 26 L [mm] 86 H [mm] 171 H1 [mm] 69 Switch panel thread M 31x1.5 Coupling kit KP EA2000 Weight 470 g / pcs GTIN 4050571924133 Customs duty number 84811005 RoHS compliant Yes Manufacturer EMC
