EAFD 3000-03D (EMC) Eco-Line sub-microfilter, G 3/8", drain automatic

Genuine EMC EAFD 3000-03D – EAFD 3000-03D (EMC) Eco-Line sub-microfilter, G 3/8", drain automatic. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: EAFD 3000-03D
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC EAFD 3000-03D – EAFD 3000-03D (EMC) Eco-Line sub-microfilter, G 3/8", drain automatic. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: EAFD 3000-03D
• Brand: EMC
• Product: EAFD 3000-03D (EMC) Eco-Line sub-microfilter, G 3/8", drain automatic

Trusted by engineers across the UK, this EAFD 3000-03D (EMC) Eco-Line sub-microfilter, G 3/8", drain automatic is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Application:
Sub-microfilters are used where high demands are placed on the purity of the compressed air. Micro-particles (> 0.01 µm) and oil mist are separated here. We recommend connecting an upstream microfilter to increase the service life.

Materials:
Body: Aluminum, gaskets: NBR, container: Polycarbonate

Temperature range:
-5 to +60 °C

Input pressure:
1.5 to 10 bar

Condensate draining:
semi-automatic**

Dust removal:
> 0.01 µm (99.999%)

Residual oil content:
0.01 mg/m³ (Class 1 according to DIN ISO 8573-1)

Media:
Compressed air, neutral gases

Scope of delivery:
Sub-microfilter including mounting bracket

Advantages:
•Simple assembly of individual components of a series by means of coupling packages,
•Fixing bracket included in the scope of delivery,

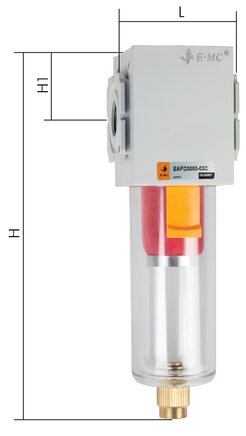

•Double-walled transparent vessel (not series 2A) Model series Eco-?Line 3A Thread G 3/8" Container design Plastic container, double-?walled Condensate drain automatic Flow* [l/min] 480 L [mm] 57 H [mm] 177 H1 [mm] 33 Coupling kit KP EA3000 Replacement filter EAFD 3000 FIL Weight 460 g / pcs GTIN 4050571940621 Customs duty number 84811005 RoHS compliant Yes Manufacturer EMC
