Description

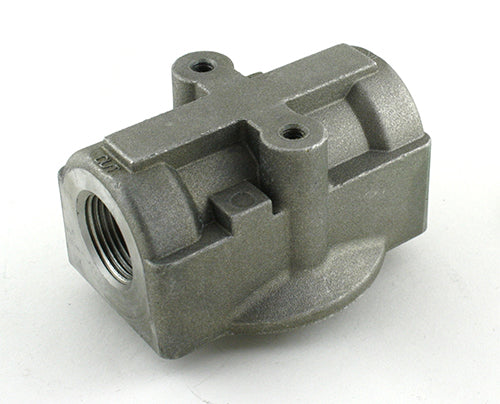

Service products include Fleetguard® 3920134 fuel filter head. Fleetguard offers a one stop shop of filters and service products covering the widest scope of engine applications in the on and off highway markets.
Specifications:
| BPV OPENING DP | No |
| Height | 3.62 inch |
| Largest Inlet Thread Diameter | 0.75 in |
| Largest Outlet Thread Diameter | 0.75 in |
| Largest Inlet Thread Class | None |
| Largest Inlet Thread Type | Internal |
| Largest Outlet Thread Form | Pipe |
| Pressure Diagnosis Port | No |
| Length | 2.45 inch |
| Overall Width | 3.05 inch |
| Largest Inlet Thread Pitch | 14.00 threads Per Inch |
| Largest Outlet Thread Pitch | 14.00 threads Per Inch |
| Largest Inlet Thread Form | Pipe |
| Largest Outlet Thread Class | None |
| Largest Outlet Thread Type | Internal |
