Description

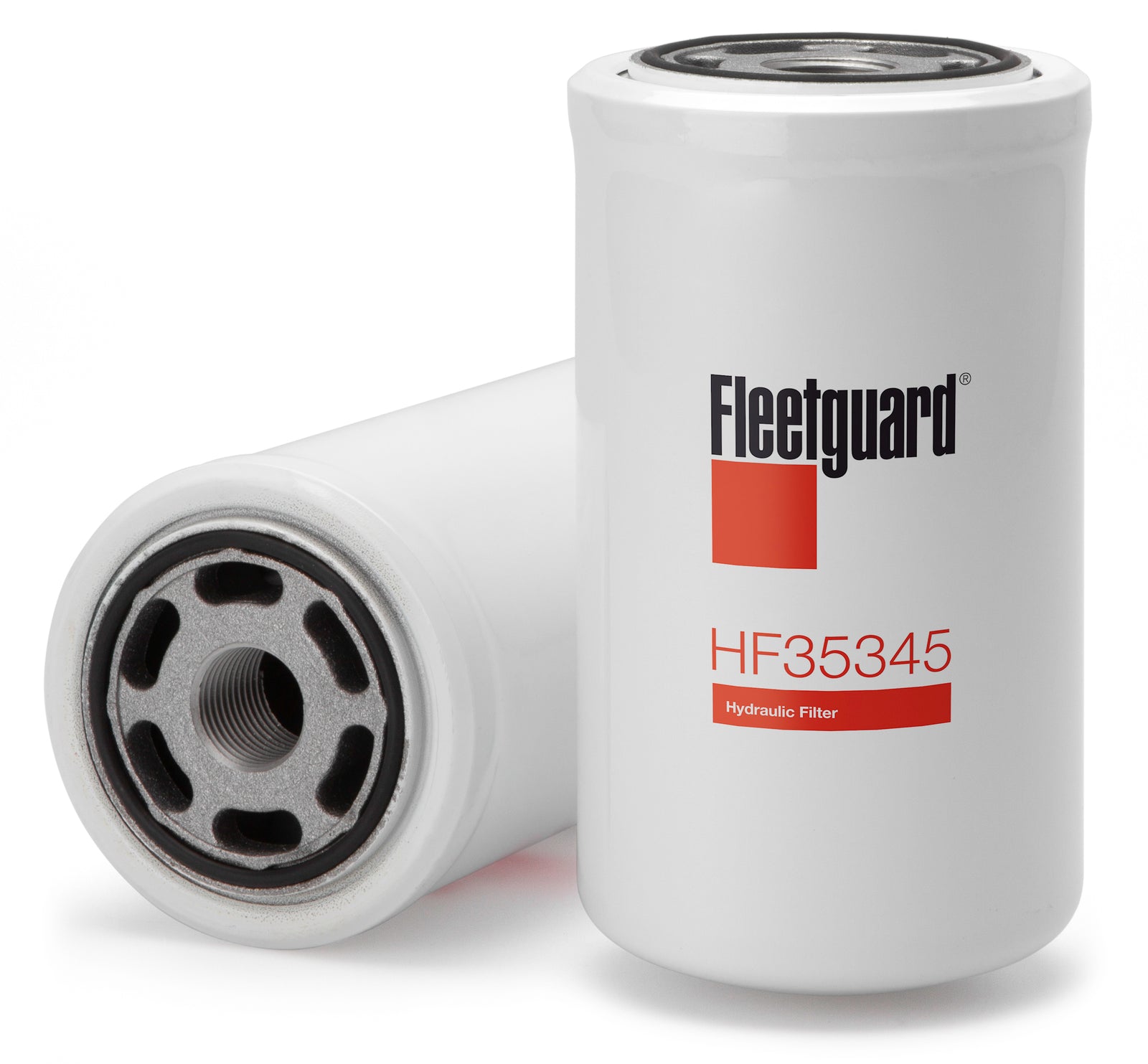

Fleetguard® HF35345 hydraulic spin-on filter with cellulose media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Specifications:
| Thread Form | Unified National |
| BPV OPENING DP | Yes |
| Thread Diameter | 1.00 inch |
| Gasket Inside Diameter | 2.48 inch |
| Particle Size at Beta 200 | 12.00 micron |
| Thread Type | Internal |
| Thread Pitch | 12.00 threads Per Inch |
| Largest OD | 3.78 inch |
| Length | 7.13 inch |
| Gasket OD | 2.76 inch |
| Thread Class | 2B |
| Flow Direction | Outside In |
Need help identifying the correct part? Call 01530 229728 or email sales@roladex.co.uk.
