Description

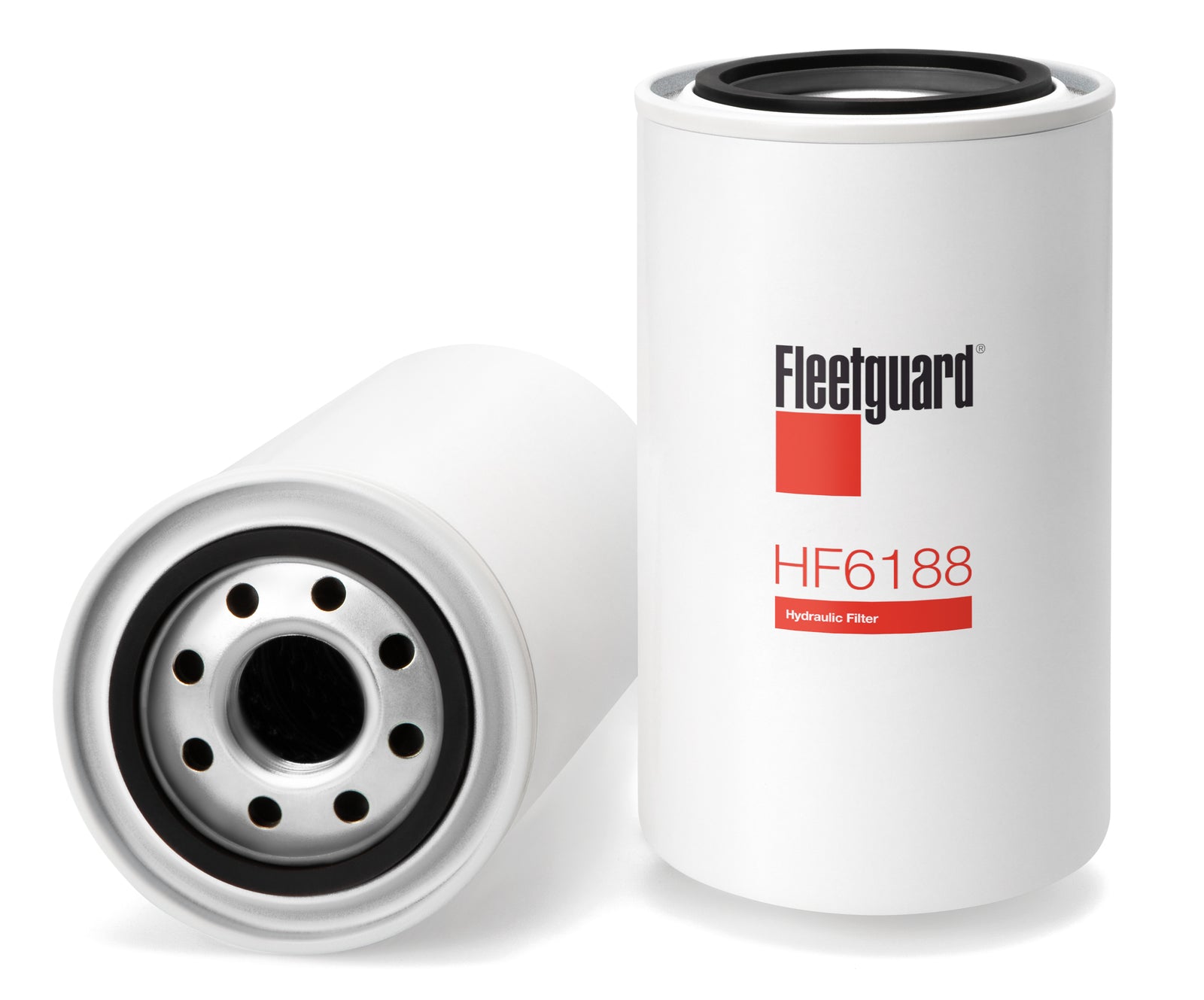

Fleetguard® HF6188 hydraulic spin-on filter with cellulose media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Specifications:
| BPV OPENING DP | 14.50 PSI |
| Length | 6.61 inch |
| Gasket Inside Diameter | 2.42 inch |
| Seam OD | 3.98 in |
| TWA MICRON @ BETA=2 | 35.00 micron |
| Thread Size | 1.00 1/8-16 UN-2B |
| Largest OD | 3.78 inch |
| Gasket OD | 2.82 in |
| Standpipe | NO |
| TWA MICRON @ BETA=75 | 75.00 micron |
