Description

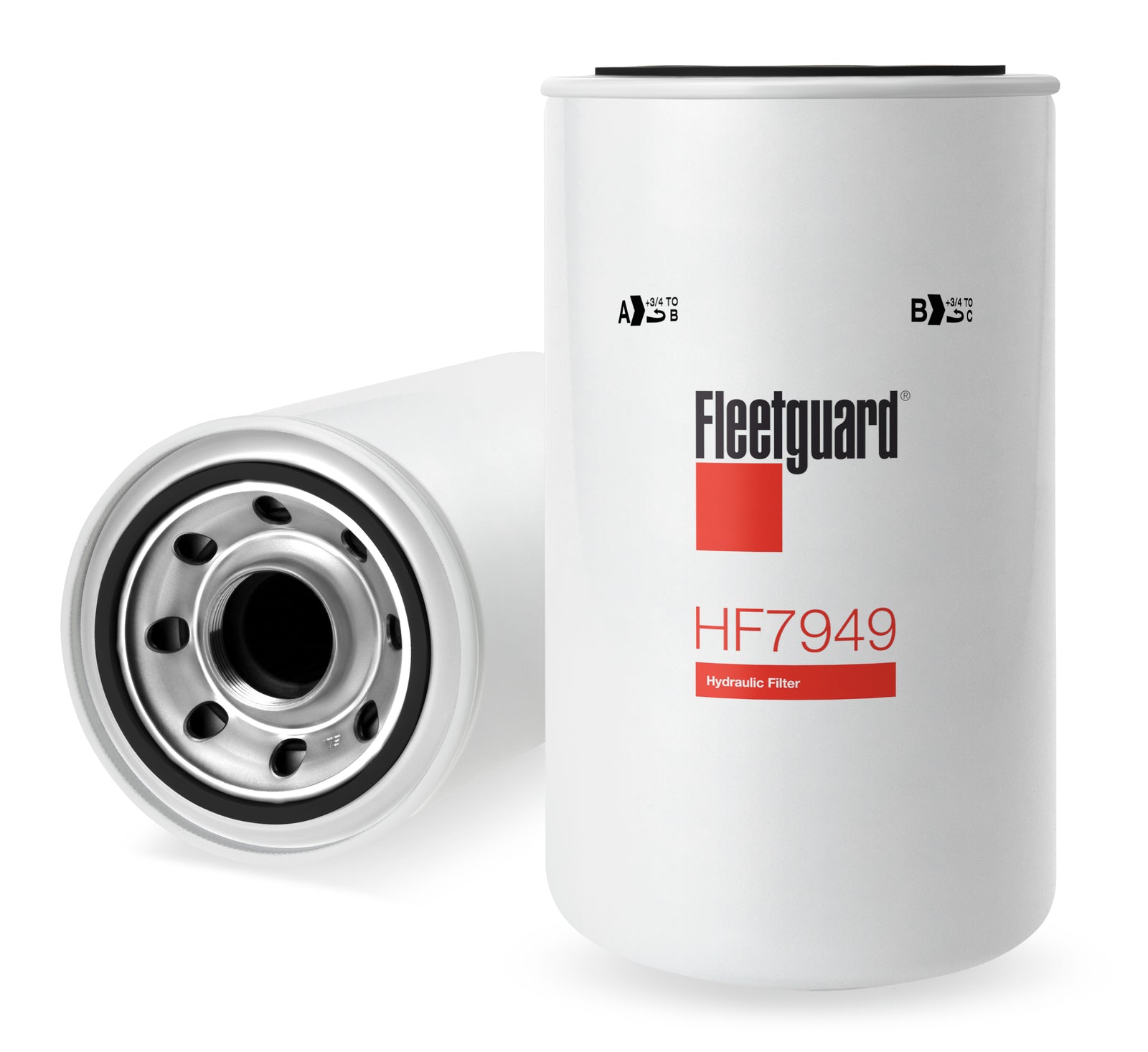

Fleetguard® HF7949 hydraulic spin-on filter with cellulose media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Specifications:
| Thread Size | M42 X 2-6H INT |
| Largest OD | 5.34 inch |
| Gasket OD | 4.30 in |
| Standpipe | NO |
| TWA MICRON @ BETA=20 | 25.00 micron |
| TWA MICRON @ BETA=75 | 33.00 micron |
| Length | 9.59 inch |
| Gasket Inside Diameter | 3.93 inch |
| Seam OD | 5.39 in |
| TWA MICRON @ BETA=2 | 11.00 micron |
| TWA MICRON @ BETA=200 | 39.00 micron |
