Description

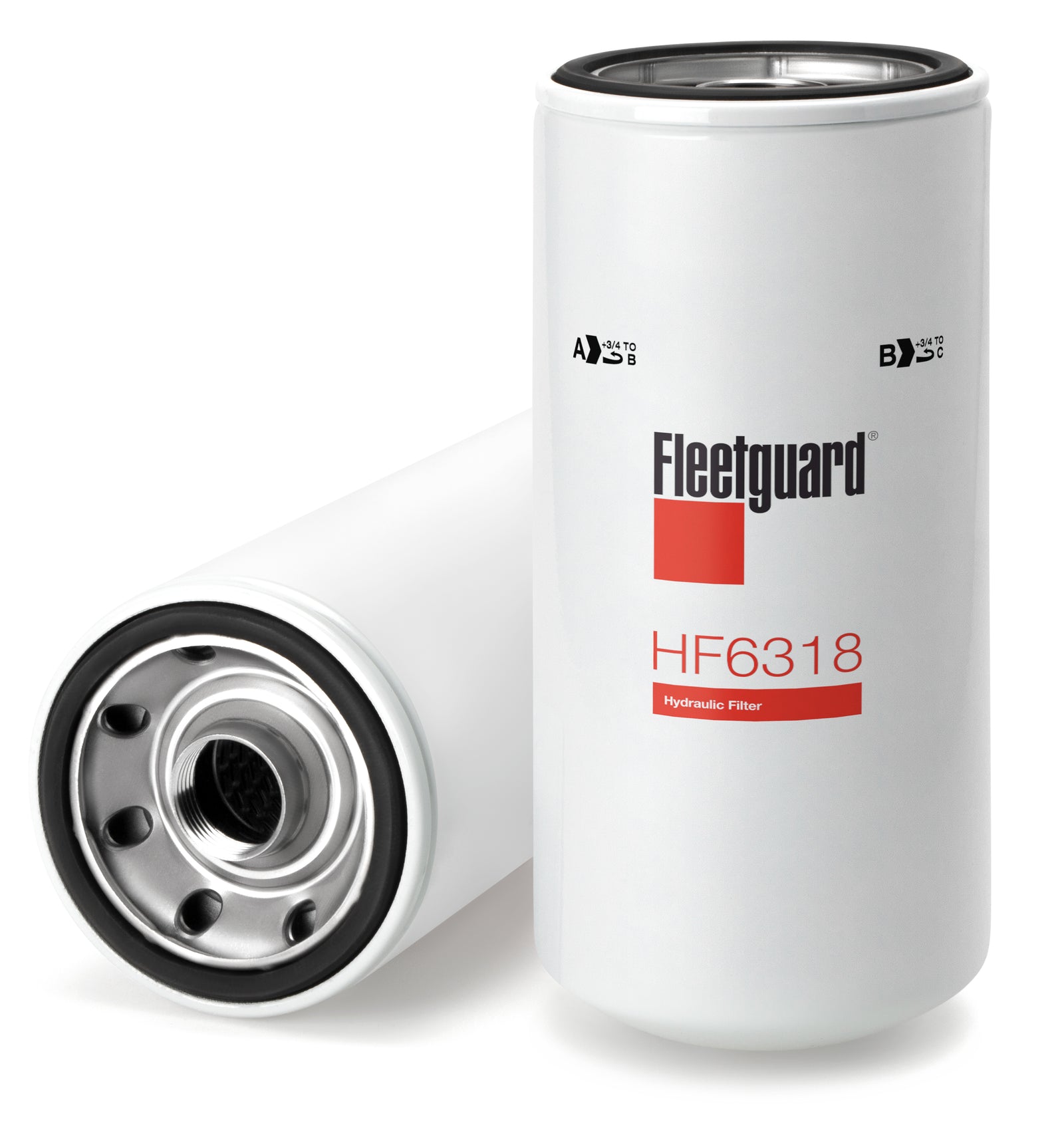

Fleetguard® HF6318 premium hydraulic spin-on filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Specifications:
| Thread Size | 1.00 5/16-12 UNS-2B |
| Largest OD | 4.67 inch |
| Gasket OD | 4.19 inch |
| Standpipe | NO |
| TWA MICRON @ BETA=20 | 14.00 micron |
| TWA MICRON @ BETA=75 | 16.00 micron |
| Length | 10.29 inch |
| Gasket Inside Diameter | 3.66 inch |
| Seam OD | 4.62 in |
| TWA MICRON @ BETA=2 | 6.00 micron |
| TWA MICRON @ BETA=200 | 19.00 micron |
