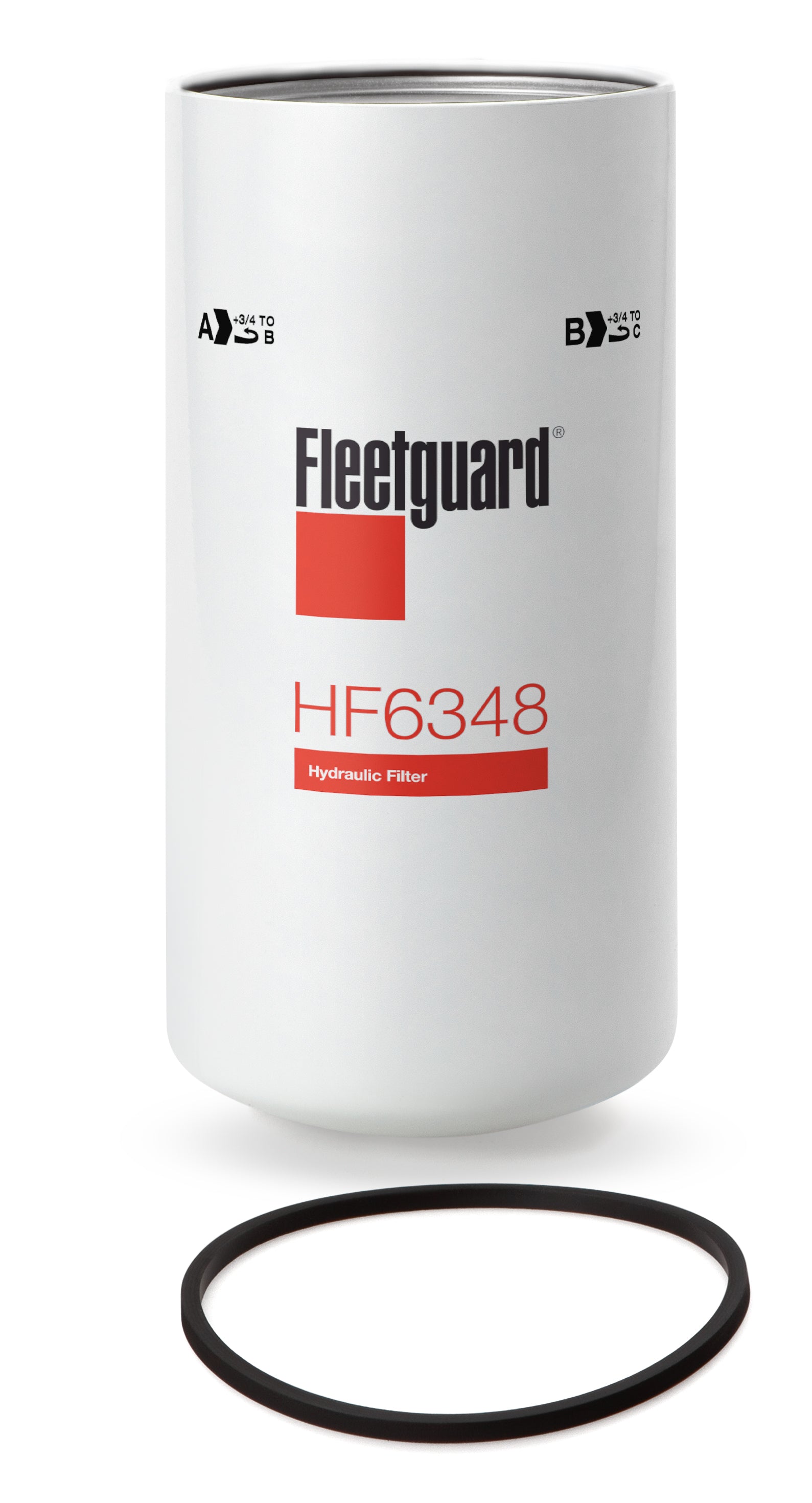

Fleetguard Hydraulic Spin-On Synthetic HF6348

Fleetguard Hydraulic Spin-On Synthetic HF6348
Product details
Brand
Fleetguard
MPN
HF6348
Category
Hydraulic Spin-On Synthetic
Roladex Industrial
Genuine branded products View more Fleetguard products.
UK & export supply Industrial parts supplied across the UK and overseas.
Sourcing & quote support Talk directly to our industrial sales team.
Price ex VAT £51.12
Price inc VAT £61.34
Price:
£51.12
ex VAT
£61.34
inc VAT
Buy Fleetguard HF6348 from Roladex Industrial

Order online today, or request a quote for quantity pricing, confirmed lead time and suitable alternatives.

In stock
Expert support Technical support & sourcing
Customer assurance Delivery, returns & supply policies
Trade accounts Apply for a trade account
UK & export supply Delivery & supply policy

Product Description

Fleetguard® HF6348 hydraulic spin-on filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Specifications:

BPV OPENING DP 22.05 PSI
Length 10.71 inch
Seam OD 5.08 in
TWA MICRON @ BETA=2 1.00 micron
TWA MICRON @ BETA=200 18.00 micron
Thread Size 1.00 1/2-16 UN-2B
Largest OD 5.08 inch
Standpipe NO
TWA MICRON @ BETA=20 9.00 micron
TWA MICRON @ BETA=75 14.00 micron
