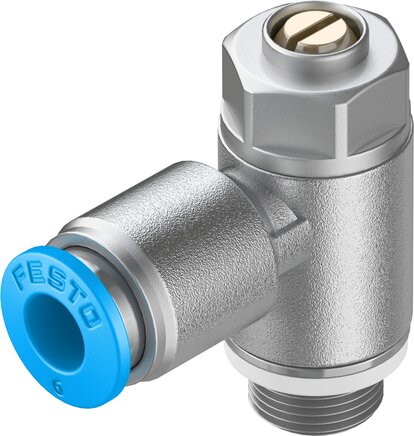

Festo | GRLA-1/8-QS-6-D | One Way Flow Control
Product details
Product Description
Genuine Festo valve supplied by Roladex for pneumatic control systems, automation lines and machine maintenance. This component is used where accurate air control, switching or directional flow is required.
| Manufacturer | Festo |
| MPN | GRLA-1/8-QS-6-D |
| Festo Part Number | 193144 |
| Product Type | One Way Flow Control |
| Series | Festo | GRLA |
| Category | Flow control valves |
| Subcategory | One-way flow control valves |
| GTIN / Barcode | 4052568015046 |
Manufacturer technical data
Technical data for Festo GRLA-1/8-QS-6-D (article 193144).
| Pneumatic connection, port 1 | QS-6 |
|---|---|
| Pneumatic connection, port 2 | G1/8 |
| Type of mounting | Screw-in With male thread |
| Operating pressure | 0.02 MPa...1 MPa 0.2 bar...10 bar 2.9 psi...145 psi |
| Ambient temperature | -10 °C...60 °C |
| Mounting position | Any |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Media temperature | -10 °C...60 °C |
| Material seals | NBR |
| Material hollow bolt | Wrought aluminium alloy anodised |
| Material release ring | POM |
