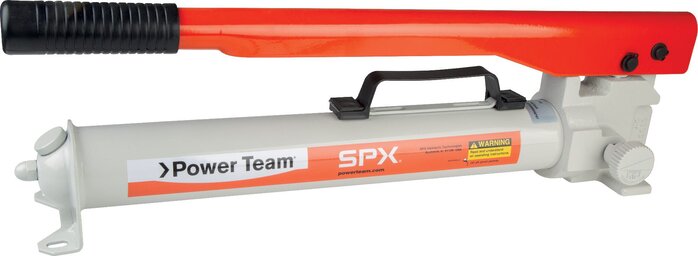

Hydraulic hand pump, 10.9/2.6 cm³/stroke, dual-stage (time-saving)
Product details
Product Description
Item description
Temperature range:-20 to +65 °C
Connection thread:
NPT 3/8" (FT)
Scope of delivery:
The pumps are delivered filled with HLP oil.
Note:
The cost-efficient single-stage hand pumps deliver a fixed, small volume of oil per stroke regardless of the operating pressure and are therefore suitable for occasional use. The two-stage hand pumps, on the other hand, supply a large volume of oil during the unpressurised idle stroke of the cylinder and only switch to the high-pressure stage when the operating pressure is reached. In the high-pressure stage, the two-stage hand pumps (like the single-stage pumps) then pump a fixed, small volume of oil per stroke. Use of a two-stage pump can save a lot of time and physical labour depending on application.
Advantages:
•robust full metal construction ensures strength and a long service life - Welding sparks do not burn through,
•the pump is equipped with a safety valve and a check valves,
•a large control valve button simplifies the precise, slow relieving of the load.
| Version | dual-?stage (time-?saving) |
| Delivery volume per stroke unpressurised [cm³] | 10,9 |
| Delivery volume per stroke max. operating pressure [cm³] | 2,6 |
| Operating pressure [bar] | 700 |
| Tank volume [LTR] | 0,9 |
| Usable oil volume [cm³] | 700 |
| Weight | 9 kg / pcs |
| GTIN | 4050571538682 |
| Customs duty number | 84122120 |
| Manufacturer | SPX Power Team |
