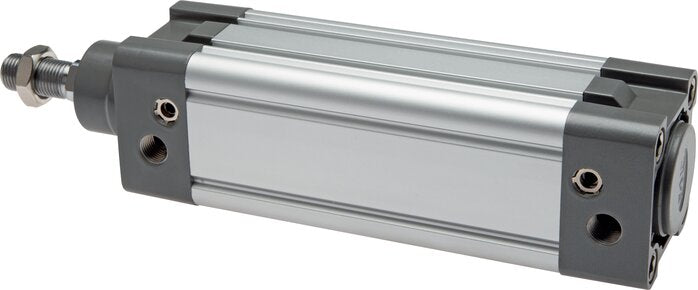

XLE 63/80 (EMC) ISO 15552 cylinders, piston 63 mm, stroke 80 mm, ECO

Genuine EMC XLE 63/80 – XLE 63/80 (EMC) ISO 15552 cylinders, piston 63 mm, stroke 80 mm, ECO. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: XLE 63/80
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC XLE 63/80 – XLE 63/80 (EMC) ISO 15552 cylinders, piston 63 mm, stroke 80 mm, ECO. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: XLE 63/80
• Brand: EMC
• Product: XLE 63/80 (EMC) ISO 15552 cylinders, piston 63 mm, stroke 80 mm, ECO

Trusted by engineers across the UK, this XLE 63/80 (EMC) ISO 15552 cylinders, piston 63 mm, stroke 80 mm, ECO is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium section tube, Piston rod: Steel, hard chromeplated, piston: Aluminium, Gasket: NBR / PUR

Temperature range:
20 to +80 °C

Operating pressure:
max. 10 bar

Version:
with magnetic pistons and adjustable end position damping

Cylinder switch type:
D, A, Ø 125 and larger: C in combination with fastening C1 or C in combination with fastening C2 Piston diameter [mm] 63 Stroke [mm] 80 A (piston rod thread) M 16x1,5 G (compressed air port) G 3/8" Repair sets XLE 63 REP B [mm] 20 C [mm] 45 D [mm] 27 F [mm] 32 G [mm] 37 H [mm] 158 K [mm] 4,0 M [mm] 75,0 N [mm] 56,5 CH [mm] 17 RT M 8 Weight 2,3 kg / pcs GTIN 4050571801328 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
