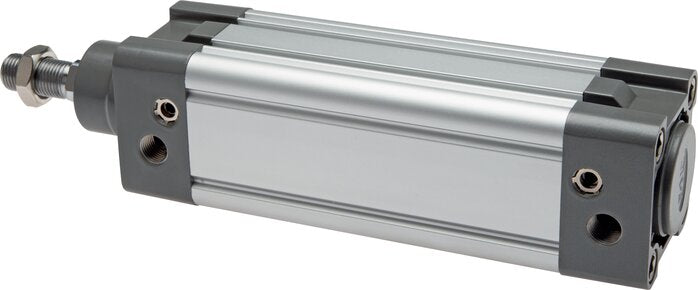

XLE 80/150 (EMC) ISO 15552 cylinders, piston 80 mm, stroke 150 mm, ECO

Genuine EMC XLE 80/150 – XLE 80/150 (EMC) ISO 15552 cylinders, piston 80 mm, stroke 150 mm, ECO. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: XLE 80/150
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC XLE 80/150 – XLE 80/150 (EMC) ISO 15552 cylinders, piston 80 mm, stroke 150 mm, ECO. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: XLE 80/150
• Brand: EMC
• Product: XLE 80/150 (EMC) ISO 15552 cylinders, piston 80 mm, stroke 150 mm, ECO

Trusted by engineers across the UK, this XLE 80/150 (EMC) ISO 15552 cylinders, piston 80 mm, stroke 150 mm, ECO is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium section tube, Piston rod: Steel, hard chromeplated, piston: Aluminium, Gasket: NBR / PUR

Temperature range:
20 to +80 °C

Operating pressure:
max. 10 bar

Version:
with magnetic pistons and adjustable end position damping

Cylinder switch type:
D, A, Ø 125 and larger: C in combination with fastening C1 or C in combination with fastening C2 Piston diameter [mm] 80 Stroke [mm] 150 A (piston rod thread) M 20x1,5 G (compressed air port) G 3/8" Repair sets XLE 80 REP B [mm] 25 C [mm] 45 D [mm] 33 F [mm] 40 G [mm] 46 H [mm] 174 K [mm] 4,0 M [mm] 93,0 N [mm] 72,0 CH [mm] 22 RT M 10 Weight 4,1 kg / pcs GTIN 4050571801410 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
