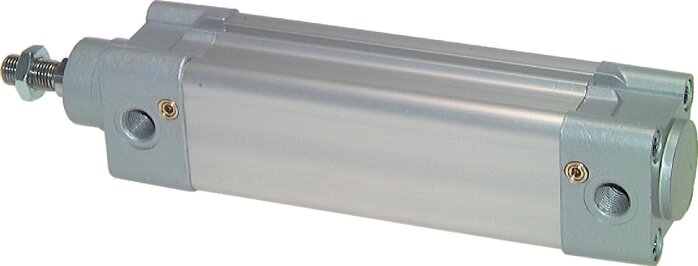

Airtec | XL 80/80-EK | ISO 15552 Cylinder | Stroke 80mm | Bore 80mm

Item description

Materials:
Head and foot: stove-enamelled die-cast aluminum, cylinder tube: anodized aluminum profile tube, piston rod: hard chromium plated steel, piston: complete piston (ST / NBR), seal: NBR / PUR

Temperature range:
-20°C to +80°C

Operating pressure:
max. 10 bar

Optional:
FKM seals (temperature range: -10°C to max. +150°C, without magnetic piston) -V, stainless steel piston rod -EK, ATEX approval Ex II 2GD c T5 T100° -20°C <=Ta<= 80°C -X

Version:
with magnetic pistons and adjustable end position damping

Cylinder switch type:
D, A Piston diameter [mm] 80 Stroke [mm] 80 Version Stainless steel piston rods A (thread) M 20x1.5 G (compressed air port) G 3/8" Repair sets XL 80 REP B [mm] 25 C [mm] 45 D [mm] 35.0 F [mm] 40 G [mm] 46 H [mm] 174 K [mm] 4 M [mm] 93.5 N [mm] 72.0 CH [mm] 22 RT M 10 Weight 4 kg / pcs GTIN 4050571800086 Customs duty number 84123100 RoHS compliant Yes Manufacturer Airtec
