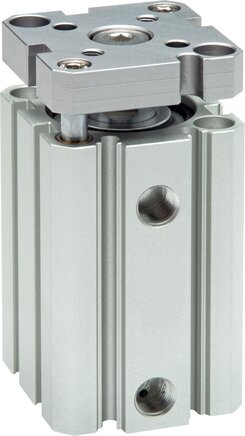

SFSA 25/80 (EMC) ISO 21287 cylinders, double acting, piston 25 mm, stroke 80 mm

Genuine EMC SFSA 25/80 – SFSA 25/80 (EMC) ISO 21287 cylinders, double acting, piston 25 mm, stroke 80 mm. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: SFSA 25/80
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC SFSA 25/80 – SFSA 25/80 (EMC) ISO 21287 cylinders, double acting, piston 25 mm, stroke 80 mm. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: SFSA 25/80
• Brand: EMC
• Product: SFSA 25/80 (EMC) ISO 21287 cylinders, double acting, piston 25 mm, stroke 80 mm

Trusted by engineers across the UK, this SFSA 25/80 (EMC) ISO 21287 cylinders, double acting, piston 25 mm, stroke 80 mm is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Head and foot: aluminum, cylinder tube: anodized aluminum, piston rod: stainless steel (Ø 32 - 100: hard chromium plated steel), seal: NBR / PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread -B Piston diameter [mm] 25 Stroke [mm] 80 Version non-?rotating piston rod G (compressed air port) M 5 Repair sets SFS 25 REP OD [mm] 12 AF [mm] 8 BG [mm] 15 D1 [mm] 22 D2 M 5 D3 [mm] 5 E [mm] 40.0 KJ [mm] 39.0 LA [mm] 5 PL1 [mm] 17.5 PL2 [mm] 5.5 RS [mm] 4.2 RT M 5 RU [mm] 7.3 S [mm] 0 TG [mm] 26.0 ZA [mm] 39 ZD [mm] 53.0 Weight 470 g / pcs GTIN 4050571931995 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
