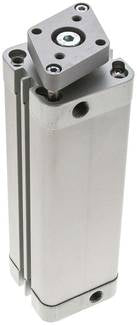

Airtec | NADA 40/125 | Double Acting | ISO 21287 Cylinder | Stroke 125mm | Bore 40mm

Manufacturer: Airtec

MPN: NADA 40/125

Item description

Materials:
Head and foot: Aluminium, cylinder tube: Anodized aluminium, piston rod: stainless steel, seal: NBR/PUR

Temperature range:
20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread male thread Piston diameter [mm] 40 Stroke [mm] 125 Version non-rotating piston rod G (compressed air port) G 1/8" Repair sets NAD 40 REP A [mm] 12 B [mm] 9 BG [mm] 14,5 CH [mm] 10 D [mm] 17 D1 [mm] 33 D2 M 5 D3 [mm] 5 E [mm] 54,5 LA [mm] 5,0 RT M 6 TG [mm] 38,0 WH [mm] 7 ZA [mm] 45 ZC [mm] 29 ZD [mm] 62 Weight 850 g / pcs GTIN 4050571519827 Customs duty number 84123100 RoHS compliant Yes Manufacturer Airtec
