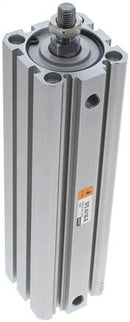

SFS 40/150-B (EMC) ISO 21287 cylinders, double acting, piston 40 mm, stroke 150 mm

Genuine EMC SFS 40/150-B – SFS 40/150-B (EMC) ISO 21287 cylinders, double acting, piston 40 mm, stroke 150 mm. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: SFS 40/150-B
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC SFS 40/150-B – SFS 40/150-B (EMC) ISO 21287 cylinders, double acting, piston 40 mm, stroke 150 mm. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: SFS 40/150-B
• Brand: EMC
• Product: SFS 40/150-B (EMC) ISO 21287 cylinders, double acting, piston 40 mm, stroke 150 mm

Trusted by engineers across the UK, this SFS 40/150-B (EMC) ISO 21287 cylinders, double acting, piston 40 mm, stroke 150 mm is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Head and foot: aluminium, cylinder tube: anodized aluminium, piston rod: stainless steel (Ø 32 100: hard chromium plated steel), seal: NBR / PUR

Temperature range:
20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread B Piston diameter [mm] 40 Stroke [mm] 150 Version Piston rod with male thread KK (piston rod male thread) M 10x1,25 G (compressed air port) G 1/8" Repair sets SFS 40 REP A [mm] 19 AD [mm] 16 AF [mm] 12 BG [mm] 16 CH [mm] 14 E [mm] 53,0 E1 [mm] 2,5 LA [mm] 5 PL1 [mm] 16,5 PL2 [mm] 9,5 RT M 6 S [mm] 0 TG [mm] 38,0 WH [mm] 7 ZA [mm] 45 ZB [mm] 52 Weight 1,1 kg / pcs GTIN 4050571928278 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
