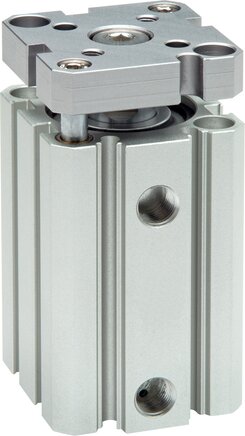

SFSA 40/20 (EMC) ISO 21287 cylinders, double acting, piston 40 mm, stroke 20 mm

Genuine EMC SFSA 40/20 – SFSA 40/20 (EMC) ISO 21287 cylinders, double acting, piston 40 mm, stroke 20 mm. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: SFSA 40/20
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC SFSA 40/20 – SFSA 40/20 (EMC) ISO 21287 cylinders, double acting, piston 40 mm, stroke 20 mm. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: SFSA 40/20
• Brand: EMC
• Product: SFSA 40/20 (EMC) ISO 21287 cylinders, double acting, piston 40 mm, stroke 20 mm

Trusted by engineers across the UK, this SFSA 40/20 (EMC) ISO 21287 cylinders, double acting, piston 40 mm, stroke 20 mm is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Head and foot: aluminum, cylinder tube: anodized aluminum, piston rod: stainless steel (Ø 32 - 100: hard chromium plated steel), seal: NBR / PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread -B Piston diameter [mm] 40 Stroke [mm] 20 Version non-?rotating piston rod G (compressed air port) G 1/8" Repair sets SFS 40 REP OD [mm] 16 AF [mm] 10 BG [mm] 16 D1 [mm] 33 D2 M 5 D3 [mm] 5 E [mm] 53.0 KJ [mm] 52.0 LA [mm] 5 PL1 [mm] 16.5 PL2 [mm] 9.5 RS [mm] 5.2 RT M 6 RU [mm] 9.0 S [mm] 0 TG [mm] 38.0 ZA [mm] 45 ZD [mm] 62.5 Weight 550 g / pcs GTIN 4050571932145 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
