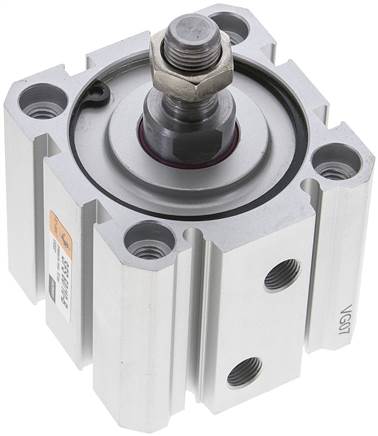

SFS 50/10-B (EMC) ISO 21287 cylinders, double acting, piston 50 mm, stroke 10 mm

Genuine EMC SFS 50/10-B – SFS 50/10-B (EMC) ISO 21287 cylinders, double acting, piston 50 mm, stroke 10 mm. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: SFS 50/10-B
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC SFS 50/10-B – SFS 50/10-B (EMC) ISO 21287 cylinders, double acting, piston 50 mm, stroke 10 mm. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: SFS 50/10-B
• Brand: EMC
• Product: SFS 50/10-B (EMC) ISO 21287 cylinders, double acting, piston 50 mm, stroke 10 mm

Trusted by engineers across the UK, this SFS 50/10-B (EMC) ISO 21287 cylinders, double acting, piston 50 mm, stroke 10 mm is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Head and foot: aluminum, cylinder tube: anodized aluminum, piston rod: stainless steel (Ø 32 - 100: hard chromium plated steel), seal: NBR / PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread -B Piston diameter [mm] 50 Stroke [mm] 10 Version Piston rod with male thread KK (piston rod male thread) M 12x1.25 G (compressed air port) G 1/8" Repair sets SFS 50 REP A [mm] 22 AD [mm] 20 AF [mm] 16 BG [mm] 20 CH [mm] 17 E [mm] 63.0 E1 [mm] 2.5 LA [mm] 5 PL1 [mm] 16.0 PL2 [mm] 10.5 RT M 8 S [mm] 4 TG [mm] 46.5 WH [mm] 8 ZA [mm] 45 Eg [mm] 53 Weight 600 g / pcs GTIN 4050571928513 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
