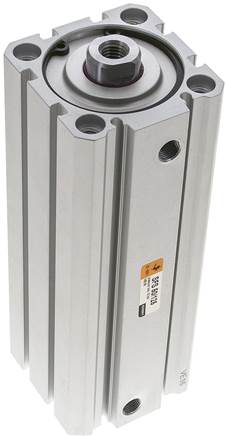

SFS 50/125 (EMC) ISO 21287 cylinders, double acting, piston 50 mm, stroke 125 mm

Genuine EMC SFS 50/125 – SFS 50/125 (EMC) ISO 21287 cylinders, double acting, piston 50 mm, stroke 125 mm. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: SFS 50/125
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC SFS 50/125 – SFS 50/125 (EMC) ISO 21287 cylinders, double acting, piston 50 mm, stroke 125 mm. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: SFS 50/125
• Brand: EMC
• Product: SFS 50/125 (EMC) ISO 21287 cylinders, double acting, piston 50 mm, stroke 125 mm

Trusted by engineers across the UK, this SFS 50/125 (EMC) ISO 21287 cylinders, double acting, piston 50 mm, stroke 125 mm is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Head and foot: aluminum, cylinder tube: anodized aluminum, piston rod: stainless steel (Ø 32 - 100: hard chromium plated steel), seal: NBR / PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread -B Piston diameter [mm] 50 Stroke [mm] 125 Version Standard KF (piston rod female thread) M 10 G (compressed air port) G 1/8" Repair sets SFS 50 REP AD [mm] 20 AF [mm] 16 BG [mm] 20 CH [mm] 17 E [mm] 63.0 E1 [mm] 2.5 LA [mm] 5 PL1 [mm] 16.0 PL2 [mm] 10.5 RT M 8 S [mm] 4 TG [mm] 46.5 WH [mm] 8 ZA [mm] 45 ZB [mm] 53 Weight 1.3 kg / pcs GTIN 4050571928520 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
