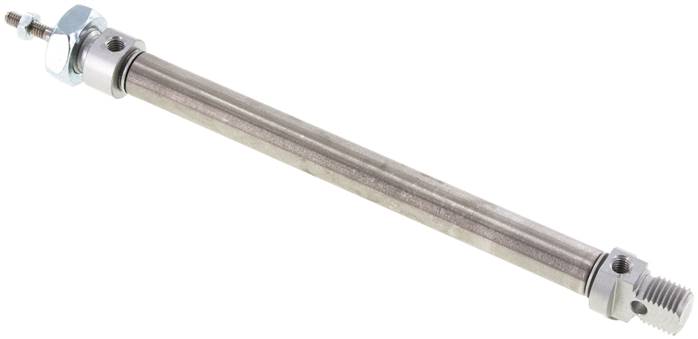

Airtec | ZDM 10/100 | Double Acting | ISO 6432 Cylinder | Stroke 100mm | Bore 10mm

Manufacturer: Airtec

MPN: ZDM 10/100

Item description

Materials:
Head and foot: anodized aluminium, cylinder tube: 1.4301, piston rod: 1.4305 seal: NBR / PUR

Temperature range:
20°C to +80°C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D in combination with fastening D1, C in combination with fastening C1

Optional:
FKM seals (temperature range: 20°C to max. +150°C, without magnetic piston) V, ATEX approval Ex II 2GD c T5 T100° 20°C <=Ta<= 80°C X Piston diameter [mm] 10 Stroke [mm] 100 Version Standard A (piston rod thread) M 4 B (fastening thread) M 12x1,25 G (compressed air port) M 5 A1 [mm] 4 C [mm] 16 D [mm] 8 E [mm] 4 F [mm] 12 G [mm] 64 K [mm] 16 L [mm] 12 M [mm] 86 N [mm] 6 P [mm] 46 Weight 70 g / pcs GTIN 4050571811167 Customs duty number 84123100 RoHS compliant Yes Manufacturer Airtec
