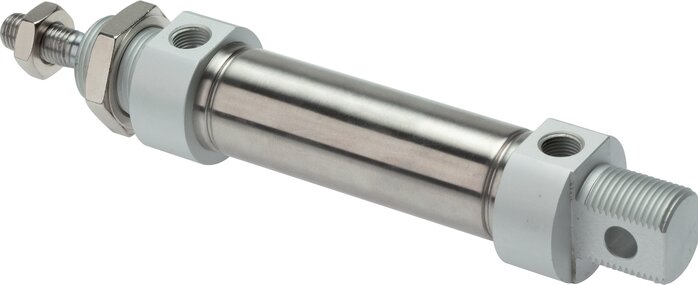

ZDM 16/200 E (EMC) ISO 6432 cylinders, double acting, piston 16 mm, stroke 200 mm

Genuine EMC ZDM 16/200 E – ZDM 16/200 E (EMC) ISO 6432 cylinders, double acting, piston 16 mm, stroke 200 mm. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: ZDM 16/200 E
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC ZDM 16/200 E – ZDM 16/200 E (EMC) ISO 6432 cylinders, double acting, piston 16 mm, stroke 200 mm. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: ZDM 16/200 E
• Brand: EMC
• Product: ZDM 16/200 E (EMC) ISO 6432 cylinders, double acting, piston 16 mm, stroke 200 mm

Trusted by engineers across the UK, this ZDM 16/200 E (EMC) ISO 6432 cylinders, double acting, piston 16 mm, stroke 200 mm is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Head and foot: anodized aluminium, cylinder tube: 1.4301, piston rod: 1.4305, seal: NBR

Temperature range:
20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D in combination with fastening D1, C in combination with fastening C1 Piston diameter [mm] 16 Stroke [mm] 200 Version Standard A (piston rod thread) M 6 B (fastening thread) M 16x1,5 G (compressed air port) M 5 A1 [mm] 6 C [mm] 21,8 D [mm] 12 E [mm] 6 F [mm] 16 G [mm] 82 K [mm] 22 L [mm] 17 M [mm] 111 N [mm] 9 P [mm] 56 CH [mm] 5 Weight 230 g / pcs GTIN 4050571930486 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
