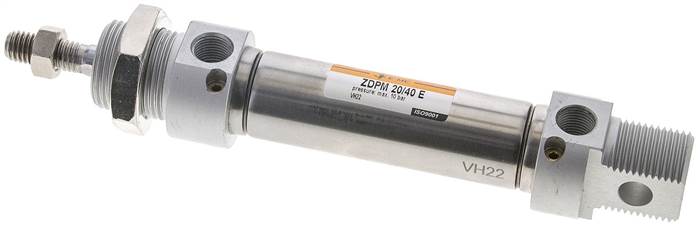

ZDPM 20/40 E (EMC) ISO 6432 cylinders, double acting, piston 20 mm, stroke 40 mm

Genuine EMC ZDPM 20/40 E – ZDPM 20/40 E (EMC) ISO 6432 cylinders, double acting, piston 20 mm, stroke 40 mm. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: ZDPM 20/40 E
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC ZDPM 20/40 E – ZDPM 20/40 E (EMC) ISO 6432 cylinders, double acting, piston 20 mm, stroke 40 mm. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: ZDPM 20/40 E
• Brand: EMC
• Product: ZDPM 20/40 E (EMC) ISO 6432 cylinders, double acting, piston 20 mm, stroke 40 mm

Trusted by engineers across the UK, this ZDPM 20/40 E (EMC) ISO 6432 cylinders, double acting, piston 20 mm, stroke 40 mm is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Head and foot: anodized aluminium, cylinder tube: 1.4301, piston rod: 1.4305, seal: NBR

Temperature range:
20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D in combination with fastening D1, C in combination with fastening C1 Piston diameter [mm] 20 Stroke [mm] 40 Version adjustable end position damping A (piston rod thread) M 8 B (fastening thread) M 22x1,5 G (compressed air port) G 1/8" A1 [mm] 8 C [mm] 29,0 D [mm] 16 E [mm] 8 F [mm] 20 G [mm] 95 K [mm] 24 L [mm] 20 M [mm] 126 N [mm] 12 P [mm] 62 CH [mm] 6 Weight 200 g / pcs GTIN 4050571930936 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
