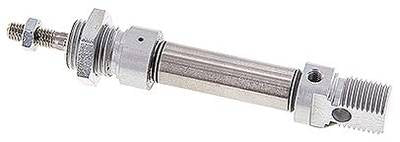

Airtec | ZEM 12/15 | Single Acting | ISO 6432 Cylinder | Stroke 15mm | Bore 12mm

Item description

Materials:
Head and foot: anodized aluminum, cylinder tube: 1.4301, piston rod: 1.4305 seal: NBR / PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D in combination with fastening D1, C in combination with fastening C1 Piston diameter [mm] 12 Stroke [mm] 15 A (piston rod thread) M 6 B (fastening thread) M 16x1.5 G (compressed air port) M 5 A1 [mm] 6 C [mm] 19 D [mm] 12 E [mm] 6 F [mm] 16 G [mm] 75 K [mm] 22 L [mm] 18 M [mm] 104 N [mm] 9 P [mm] 48 CH [mm] 5 Weight 75 g / pcs GTIN 4050571815622 Customs duty number 84123100 RoHS compliant Yes Manufacturer Airtec
