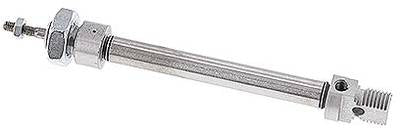

Airtec | ZEM 8/50 | Single Acting | ISO 6432 Cylinder | Stroke 50mm | Bore 8mm

Item description

Materials:
Head and foot: anodized aluminum, cylinder tube: 1.4301, piston rod: 1.4305 seal: NBR / PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D in combination with fastening D1, C in combination with fastening C1 Piston diameter [mm] 8 Stroke [mm] 50 A (piston rod thread) M 4 B (fastening thread) M 12x1.25 G (compressed air port) M 5 A1 [mm] 4 C [mm] 16 D [mm] 8 E [mm] 4 F [mm] 12 G [mm] 64 K [mm] 16 L [mm] 12 M [mm] 86 N [mm] 6 P [mm] 46 Weight 55 g / pcs GTIN 4050571815868 Customs duty number 84123100 RoHS compliant Yes Manufacturer Airtec
