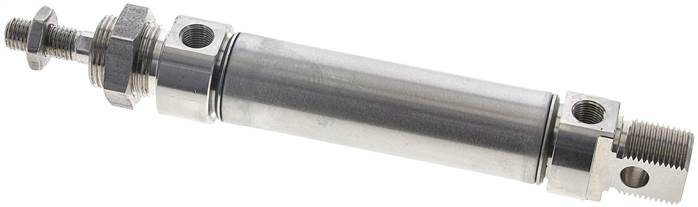

Airtec | ZDM 25/60 ES | ISO 6432 Cylinder | Stroke 60mm | Bore 25mm

Airtec Airtec | ZDM 25/60 ES | ISO 6432 Cylinder | Stroke 60mm | Bore 25mm
Product details
Brand
Airtec
Category
Pneumatic Cylinders
Roladex Industrial
Genuine branded products View more Airtec products.
UK & export supply Industrial parts supplied across the UK and overseas.
Sourcing & quote support Talk directly to our industrial sales team.
Price ex VAT Ā£104.45
Price inc VAT Ā£125.34
Price:
Ā£104.45
ex VAT
Ā£125.34
inc VAT
Buy Airtec from Roladex Industrial

Order online today, or request a quote for quantity pricing, confirmed lead time and suitable alternatives.

In stock
Expert support Technical support & sourcing
Customer assurance Delivery, returns & supply policies
Trade accounts Apply for a trade account
UK & export supply Delivery & supply policy

Product Description

Item description

Materials:
 Head and foot: 1.4301, cylinder tube: 1.4301, piston rod: 1.4436, seals: NBR / PUR

Temperature range:
 -20Ā°C to +80Ā°C

Operating pressure:
 max. 10 bar

Version:
 With Magnetic piston

Cylinder switch type:
 C in combination with mounting E1

Optional:
 FKM seals (temperature range: -20Ā°C to max. +150Ā°C, without magnetic piston) -V
PisĀ­ton diĀ­amĀ­eĀ­ter [mm] 25
Stroke [mm] 60
VerĀ­sion StanĀ­dard
A (pisĀ­ton rod thread) M 10x1,25
B (fasĀ­tenĀ­ing thread) M 22x1,5
G (comĀ­pressed air port) G 1/8"
A1 [mm] 10
C [mm] 30
D [mm] 16
E [mm] 8
F [mm] 22
G [mm] 104
K [mm] 28
L [mm] 22
M [mm] 140
N [mm] 12
P [mm] 68
CH [mm] 9
Weight 480 g / pcs
GTIN 4050571812294
Customs duty number 84123100
RoHS compliant Yes
Manufacturer Airtec
