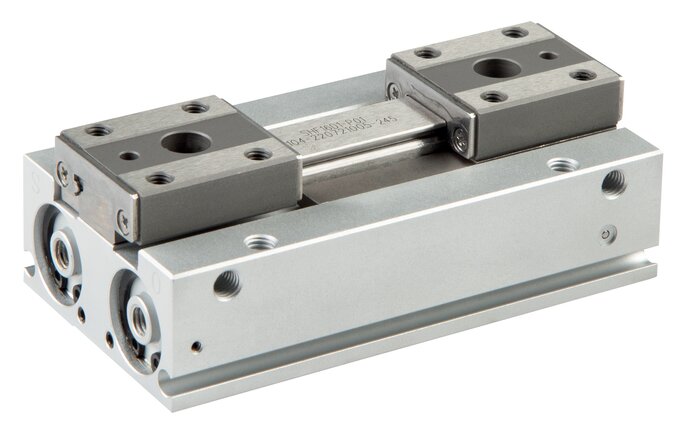

EMC Parallel Gripper (Flat) Piston 16Mm, Lateral Pressure Connection

EMC Parallel – Gripper (Flat) Piston 16Mm, Lateral Pressure Connection

Genuine EMC part Parallel. Ideal for maintenance and replacement on pneumatic systems. If you’re matching an existing unit, the part number is the safest way to confirm compatibility.

• Part number: Parallel
• Product: Gripper (Flat) Piston 16Mm, Lateral Pressure Connection
• Brand: EMC
• Support: Need help cross-referencing? Send us your existing code/label and we’ll confirm.

Delivery & trade: Fast UK supply available. Request a quote for best pricing on quantities.

---

Item description

Materials:
Body: anodized aluminum / galvanized steel / stainless steel, piston: aluminum, gripper mounts: stainless steel, seals: NBR / PUR

Temperature range:
-10 to +60 °C

Operating pressure:
max. 7 bar

Maximum working frequency:
120 cycles / minute (long stroke: 60 cycles / minute)

Repeatability:
± 0.05 mm (with eccentric load: ± 0.15 mm)

Version:
With Magnetic piston

Cylinder switch type:
D

Advantages:
•Ideal for pick and place applications,
•High repeat accuracy (± 0.05 mm),
•Flat body for installation in confined spaces,
•Precise re-installation thanks to fitting holes in body and gripper mounts,
•Many mounting variants possible,
•Main installation dimensions identical to SMC series MHF2 Design Short stroke Version lateral pressure connection Piston diameter [mm] 16 Gripping path (L) [mm] 16 Eff. holding force* grips outside [N] 90 Z (compressed air port) M 5 Repair sets SHF 16 REP A [mm] 72 B [mm] 52 C [mm] 27.4 D [mm] 57.5 E M 5 EA [mm] 5.5 F M 5 FA [mm] 12 G [mm] 38 HA [mm] 36 HB [mm] 43 J (+0 / -0.03) [mm] 4 (3 deep) K [mm] 6.2 L (+1 / -1) [mm] 16 M [mm] 6 N [mm] 5 NF 2 O [mm] 20 PA M 4 PB (+0 / -0.025) [mm] 3.0 (3.0 deep) QA [mm] 15 QB [mm] 20 RA [mm] 50 RB [mm] 33 RC [mm] 24 S [mm] 54 TA [mm] 26 TB [mm] 10.6 TC [mm] 19.0 U (+0 / -0.1) [mm] 27 VA [mm] 4.3 VB [mm] 7.5 Weight 360 g / pcs GTIN 4050571940904 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
