EMC Parallel Gripper, Pistons 25Mm, Single Acting - Closed When Not Pressurized (Internal Grab)

EMC Parallel – Gripper, Pistons 25Mm, Single Acting - Closed When Not Pressurized (Internal Grab)

Genuine EMC part Parallel. Ideal for maintenance and replacement on pneumatic systems. If you’re matching an existing unit, the part number is the safest way to confirm compatibility.

• Part number: Parallel

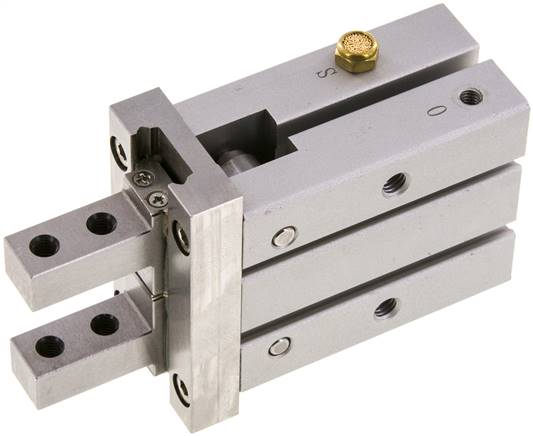

• Product: Gripper, Pistons 25Mm, Single Acting - Closed When Not Pressurized (Internal Grab)
• Brand: EMC
• Support: Need help cross-referencing? Send us your existing code/label and we’ll confirm.

Delivery & trade: Fast UK supply available. Request a quote for best pricing on quantities.

---

Item description

Materials:
Body: Anodized aluminum / galvanized steel / stainless steel, piston: Aluminum / stainless steel, gripper finger and ball guide: hardened stainless steel, seals: NBR / PUR

Temperature range:
-10 to +60 °C

Operating pressure:
max. 7 bar

Maximum working frequency:
180 cycles / minute

Repeatability:
± 0.01 mm

Version:
With Magnetic piston

Cylinder switch type:
F or D (cylinder switch type D not for Ø 10)

Advantages:
•ideal for Pick and Place applications,
•high repeatability (± 0.01 mm),
•guidance through stable ball guide,
•precise reinstallation due to front centering bore and tolerance bore,
•many mounting variants possible,
•main mounting dimensions identical to SMC series MHZ2 Version single acting - closed when not pressurised (internal grab) Piston diameter [mm] 25 Gripper path [mm] 14,3 Eff. holding force* grips inside [N] 87 Z (compressed air port) M 5 Repair sets SHZ 25 REP A [mm] 52,0 B [mm] 63,6 C [mm] 11,0 D [mm] 25,5 E [mm] 102,7 F [mm] 63 G (+0 / -0,05) [mm] 10 H [mm] 30,0 I [mm] 36 J [mm] 40 K [mm] 22 L [mm] 33,6 M (+0,05 / -0) [mm] 26 (3.5 deep) O [mm] 9,5 P [mm] 23,5 Q [mm] 19,5 K1 [mm] 21,8 K2 [mm] 10,0 K3 (+0,05 / -0) [mm] 4 (4 deep) R [mm] 22,0 S [mm] 36,5 U M 5 V (+0 / -0,05) [mm] 12 W [mm] 6 X [mm] 12,0 Y M 6 Y1 [mm] 14,5 Y2 [mm] 10,0 Y3 [mm] 12 Y4 [mm] 5,1 OP (+2 / -0) [mm] 33,5 CL (+0 / -0,7) [mm] 19,2 Weight 450 g / pcs GTIN 4050571871758 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
