Description
Item description
Operating pressure:max. 700 bar
Temperature range:
-20 to +65 °C
Scope of delivery:
All cylinders are supplied with a mounted coupling sleeve type 9796.
Advantages:
•Robust and high quality multi-purpose cylinder for lifting and crimping process at an especially reasonable price

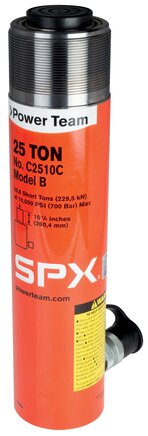

| Lifting force [to (Kraft)] | 25 |
| Stroke [mm] | 158.8 |
| oil volume [cm³] | 527.8 |
| Height retracted [mm] | 273.1 |
| Internal thread piston rod | UN 1-1/2"-16 |
| External thread cylinder | UN 3-5/16"-12 |
| Cylinder diameter (outer) [mm] | 85.7 |
| Weight | 10 kg / pcs |
| GTIN | 4050571230258 |
| Customs duty number | 84122120 |
| Manufacturer | SPX Power Team |
