Description
Item description
Operating pressure:max. 700 bar
Temperature range:
-20 to +65 °C
Scope of delivery:
All cylinders are supplied with a mounted coupling sleeve type 9796.
Advantages:

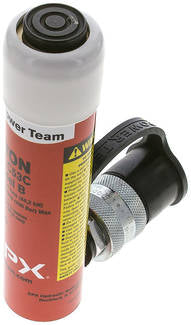

•Robust and high quality multi-purpose cylinder for lifting and crimping process at an especially reasonable price
| Lifting force [to (Kraft)] | 5 |
| Stroke [mm] | 82.6 |
| oil volume [cm³] | 52.4 |
| Height retracted [mm] | 165.1 |
| Internal thread piston rod | UNF 3/4"-16 |
| External thread cylinder | UN 1-1/2"-16 |
| Cylinder diameter (outer) [mm] | 38.1 |
| Weight | 1.6 kg / pcs |
| GTIN | 4050571230470 |
| Customs duty number | 84122120 |
| Manufacturer | SPX Power Team |
