Description

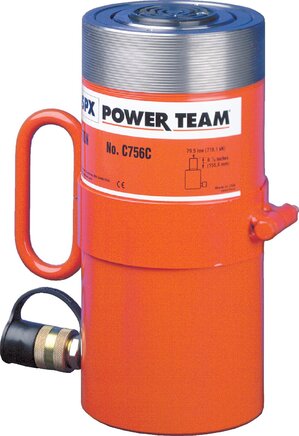

Item description
Operating pressure:max. 700 bar
Temperature range:
-20 to +65 °C
Scope of delivery:
All cylinders are supplied with a mounted coupling sleeve type 9796.
Advantages:
•Robust and high quality multi-purpose cylinder for lifting and crimping process at an especially reasonable price
| Lifting force [to (Kraft)] | 55 |
| Stroke [mm] | 336.6 |
| oil volume [cm³] | 2397.9 |
| Height retracted [mm] | 460.4 |
| External thread cylinder | UN 5"-12 |
| Cylinder diameter (outer) [mm] | 127.0 |
| Weight | 44 kg / pcs |
| GTIN | 4050571230494 |
| Customs duty number | 84122120 |
| Manufacturer | SPX Power Team |
