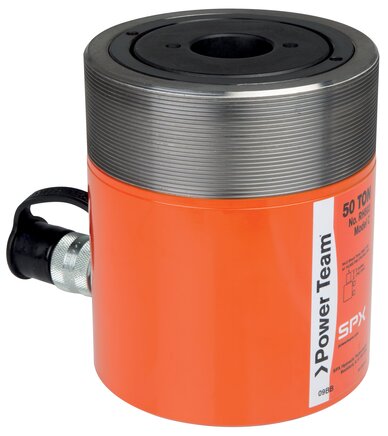

Description
Item description
Operating pressure:max. 700 bar
Temperature range:
-20 to +65 °C
Scope of delivery:
All cylinders (except for type RH 120) are supplied with a mounted coupling sleeve type 9796.
Advantages:
•Ideal for pulling and tensioning cables, extracting bolts, anchoring screws and pressure spindles.
| Lifting force [to (Kraft)] | 30 |
| Stroke [mm] | 152,4 |
| oil volume [cm³] | 624,9 |
| Height retracted [mm] | 247,7 |
| Centre hole diameter [mm] | 32,5 |
| External thread cylinder | UN 4-3/4"-12 |
| Cylinder diameter (outer) [mm] | 120,7 |
| Weight | 18 kg / pcs |
| GTIN | 4050571578053 |
| Customs duty number | 84122120 |
| Manufacturer | SPX Power Team |
