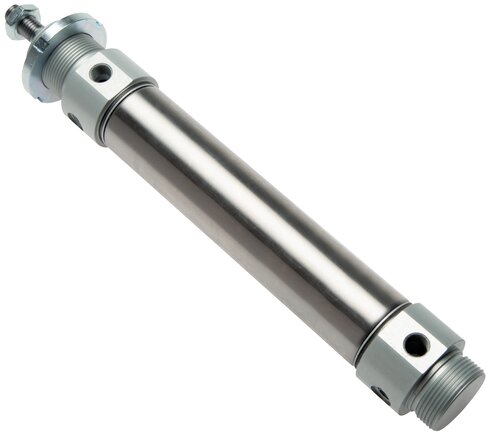

Airtec | DSWPM 63/40 | Round Cylinder | Stroke 40mm | Bore 63mm

Manufacturer: Airtec

MPN: DSWPM 63/40

Item description

Materials:
Head and foot: anodized aluminium, cylinder tube: 1.4301, piston rod: hard chromium plated steel, seal: NBR / PUR

Temperature range:
20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D in combination with fastening D1, C in combination with fastening C1 Piston diameter [mm] 63 Stroke [mm] 40 Version Standard A (piston rod thread) M 16 B (fastening thread) M 45x1,5 G (compressed air port) G 3/8" B1 [mm] 9 B2 [mm] 64 D1 [mm] 58 D2 [mm] 20 D4 [mm] 70 D5 [mm] 45 D6 [mm] 65,4 D7 M 14x1,5 F [mm] 32 K [mm] 50 L1 [mm] 192 L2 [mm] 63 L3 [mm] 98 L4 [mm] 38 L5 [mm] 18 CH [mm] 16 Weight 1,9 kg / pcs GTIN 4050571275921 Customs duty number 84123100 RoHS compliant Yes Manufacturer Airtec
